RN1607 - Silicon NPN Epitaxial Type Transistors

Toshiba

Datasheet Details

Part number	RN1607
Manufacturer	Toshiba
File Size	432.95 KB
Description	Silicon NPN Epitaxial Type Transistors
Datasheet	RN1607 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
RN1632A	(RN1220 / RN1632) Thin Film Chip Resistor	TFT
RN1632B	(RN1220 / RN1632) Thin Film Chip Resistor	TFT
RN1632C	(RN1220 / RN1632) Thin Film Chip Resistor	TFT
RN1632D	(RN1220 / RN1632) Thin Film Chip Resistor	TFT
RN1632E	(RN1220E / RN1632E) RNxxxxE Series / High Precision Chip Distributors	Susumu

Other Datasheets by Toshiba

Part Number	Description
RN1601	Silicon NPN Epitaxial Type Transistors
RN1602	Silicon NPN Epitaxial Type Transistors
RN1603	Silicon NPN Epitaxial Type Transistors
RN1604	Silicon NPN Epitaxial Type Transistors
RN1605	Silicon NPN Epitaxial Type Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

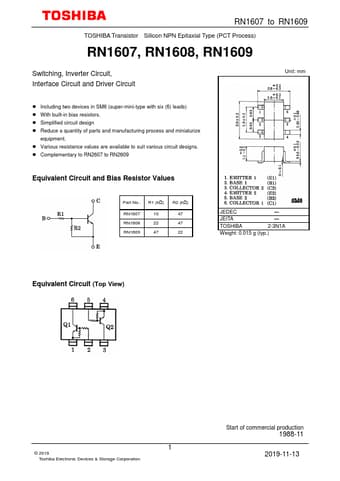

RN1607 to RN1609 TOSHIBA Transistor Silicon NPN Epitaxial Type (PCT Process) RN1607, RN1608, RN1609 Switching, Inverter Circuit, Interface Circuit and Driver Circuit Unit: mm  Including two devices in SM6 (super-mini-type with six (6) leads)  With built-in bias resistors.  Simplified circuit design  Reduce a quantity of parts and manufacturing process and miniaturize equipment.  Various resistance values are available to suit various circuit designs.  Complementary to RN2607 to RN2609 Equivalent Circuit and Bias Resistor Values Part No.. R1 (kΩ) R2 (kΩ) RN1607 10 47 RN1608 22 47 RN1609 47 22 SM6 JEDEC ― JEITA ― TOSHIBA 2-3N1A Weight: 0.015 g (typ.
