| Description | Pin description Pin No. Pin name 1 PWM_CLK 2 VDDIO 3 NCS 4 SDI 5 ISEL2 6 SDO 7 AGND 8 SCLK 9 OSEL1 10 OSEL2 11 PWM1 12 PWM2 13 PWM3 14 PWM4 15 CM1 16 CM2 17 DIAG1 18 DIAG2 19 PGND1 20 PGND1 21 OUT1 22 OUT1 23 OUT2 24 OUT2 25 VBAT 26 VBAT 27 OUT3 28 OUT3 29 OUT4 30 OUT4 TB9053FTG,TB9054FTG Table 6.1. Pin description Input/ output IN P... |
| Features |
● Motor driver block: Dual-channel, H-bridge driver (Ron(Nch+Nch)) < 350 mΩ (Max @ Tj = 150°C, VBAT = 8 V) Dual-Channel Mode and Combined-Channel Mode selectable, connecting two outputs externally allows this IC to function as a single-channel H-bridge circuit and the device is also used as a 4-channel Half Bridge driver. ● Detection features: Over... |
| Datasheet |

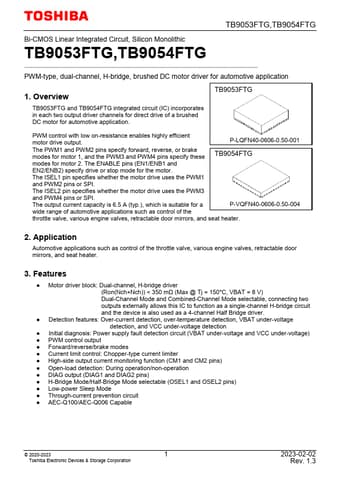

 TB9053FTG Datasheet - 5.75MB |
