Toshiba Electronic Components Datasheet

TLP290-SE Datasheet

Photocoupler

No Preview Available !

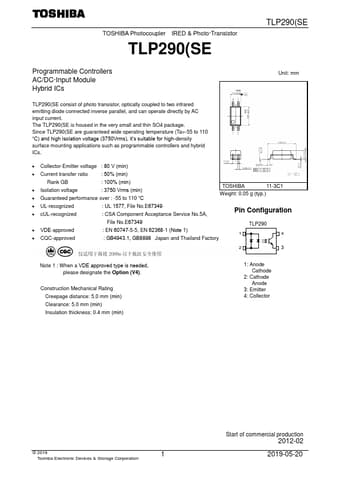

TOSHIBA Photocoupler IRED & Photo-Transistor
TLP290(SE
TLP290(SE
Programmable Controllers
AC/DC-Input Module
Hybrid ICs
Unit: mm
TLP290(SE consist of photo transistor, optically coupled to two infrared
emitting diode connected inverse parallel, and can operate directly by AC
input current.
The TLP290(SE is housed in the very small and thin SO4 package.
Since TLP290(SE are guaranteed wide operating temperature (Ta=-55 to 110
˚C) and high isolation voltage (3750Vrms), it’s suitable for high-density
surface mounting applications such as programmable controllers and hybrid
ICs.
Collector-Emitter voltage : 80 V (min)
Current transfer ratio
: 50% (min)
Rank GB
: 100% (min)
Isolation voltage
: 3750 Vrms (min)
Guaranteed performance over : -55 to 110 ˚C
TOSHIBA
11-3C1
Weight: 0.05 g (typ.)
UL-recognized
cUL-recognized
: UL 1577, File No.E67349
: CSA Component Acceptance Service No.5A,
Pin Configuration
VDE-approved
CQC-approved
File No.E67349
: EN 60747-5-5, EN 62368-1 (Note 1)
: GB4943.1, GB8898 Japan and Thailand Factory
TLP290
1
4
2
3
Note 1 : When a VDE approved type is needed,
please designate the Option (V4).
Construction Mechanical Rating
Creepage distance: 5.0 mm (min)
Clearance: 5.0 mm (min)
Insulation thickness: 0.4 mm (min)
1: Anode
Cathode
2: Cathode
Anode
3: Emitter
4: Collector
© 2019
1
Toshiba Electronic Devices & Storage Corporation
Start of commercial production
2012-02
2019-05-20


Toshiba Electronic Components Datasheet

TLP290-SE Datasheet

Photocoupler

No Preview Available !

Current Transfer Ratio (Unless otherwise specified, Ta = 25°C)
TYPE
TLP290
Classification
(Note1)
Blank
Rank Y
Rank GR
Rank GB
Rank BL
Current Transfer Ration (%)
(IC / IF)
IF = 5 mA, VCE = 5 V, Ta = 25°C
Min
Max
Marking of Classification
50
600
Blank, YE, GR, BL, GB
50
150
YE
100
300
GR
100
600
GB
200
600
BL
TLP290(SE
Note1: Specify both the part number and a rank in this format when ordering
(e.g.) rank GB: TLP290(GB,SE
For safety standard certification, however, specify the part number alone.
(e.g.) TLP290(GB,SE: TLP290
Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25°C)
Characteristic
Symbol
Note
Rating
Unit
R.M.S. forward current
Input forward current derating (Ta 90°C)
Input forward current (pulsed)
Input power dissipation
Input power dissipation derating (Ta 90°C)
Junction temperature
Collector-emitter voltage
Emitter-collector voltage
Collector current
Collector power dissipation
Collector power dissipation derating (Ta 25°C)
Junction temperature
Operating temperature range
Storage temperature range
Lead soldering temperature
Total package power dissipation
Total package power dissipation derating (Ta 25°C)
Isolation voltage
IF(RMS)
ΔIF /ΔTa
IFP
PD
ΔPD/ΔTa
Tj
VCEO
VECO
IC
PC
ΔPC /ΔTa
Tj
Topr
Tstg
Tsol
PT
ΔPT /ΔTa
BVS
(Note 2)
(Note3)
±50
-1.5
±1
100
-3.0
125
80
7
50
150
-1.5
125
-55 to 110
-55 to 125
260 (10 s)
200
-2.0
3750
mA
mA /°C
A
mW
mW/°C
°C
V
V
mA
mW
mW /°C
°C
°C
°C
°C
mW
mW /°C
Vrms
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note2: Pulse width 100 μs, frequency 100 Hz
Note3: AC, 60 s., R.H.60 %, Device considered a two terminal device: LED side pins shorted together and
detector side pins shorted together.
© 2019
2
Toshiba Electronic Devices & Storage Corporation
2019-05-20
