MG300Q2YS61 - High Power Switching Applications Motor Control Applications

Datasheet Details

Part number	MG300Q2YS61
Manufacturer	Toshiba Electronic Devices & Storage
File Size	269.93 KB
Description	High Power Switching Applications Motor Control Applications
Datasheet	MG300Q2YS61 Datasheet
Additional preview pages of the MG300Q2YS61 datasheet.

📁 Similar Datasheet

MG300Q2YS60A - High Power Switching Applications Motor Control Applications (Mitsubishi Electric)
MG300Q2YS40 - N CHANNEL IGBT (HIGH POWER SWITCHING / MOTOR CONTROL APPLICATIONS) (Toshiba)
MG300Q2YS50 - N CHANNEL IGBT (HIGH POWER SWITCHING / MOTOR CONTROL APPLICATIONS) (Toshiba)
MG300Q1UK1 - NPN (ETC)
MG300Q1UK1 - TRANSISTOR MODULES (ETC)
MG300Q1US11 - INSULATED GATE BIPOLAR TRANSISTOR (Toshiba)
MG300Q1US41 - N CHANNEL IGBT (HIGH POWER SWITCHING / MOTOR CONTROL APPLICATIONS) (Toshiba)
MG300Q1US51 - N CHANNEL IGBT (HIGH POWER SWITCHING / MOTOR CONTROL APPLICATIONS) (Toshiba)
MG300G1UL1 - NPN (ETC)
MG300H1FL1 - NPN (ETC)

Other Datasheets by Toshiba Semiconductor

MG300Q2YS60A - High Power Switching Applications Motor Control Applications
MG300Q2YS65H - IGBT Module Silicon N Channel IGBT
MG300J2YS40 - SILICON N CHANNEL 1GBT

Full PDF Text Transcription

Click to expand full text

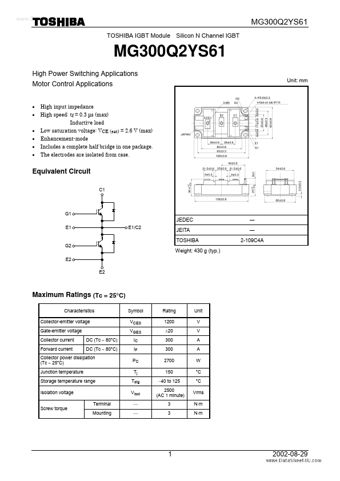

www.DataSheet4U.com MG300Q2YS61 TOSHIBA IGBT Module Silicon N Channel IGBT MG300Q2YS61 High Power Switching Applications Motor Control Applications · · · · · · High input impedance High speed: tf = 0.3 µs (max) Inductive load Low saturation voltage: VCE (sat) = 2.6 V (max) Enhancement-mode Includes a complete half bridge in one package. The electrodes are isolated from case. Unit: mm Equivalent Circuit C1 G1 JEDEC E1 E1/C2 ― ― 2-109C4A JEITA TOSHIBA G2 E2 E2 Weight: 430 g (typ.
