20NM65 Datasheet - UTC

N-CHANNEL POWER MOSFET

20NM65 Features

* RDS(ON) ≤ 0.24 Ω @ VGS=10V, ID=10A

* By using Super Junction Structure

* Fast Switching

* With 100% Avalanche Tested

* SYMBOL 1 1 TO-220F1 TO-220F2 1 TO-247 5 1 DFN8080-4

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free 20NM65L-TF1-T 20NM65G-TF1-T

20NM65 General Description

The UTC 20NM65 is a Super Junction MOSFET Structure and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and a high rugged avalanche characteristics. This power MOSFET is usually used at AC-DC converters for power applications. * F.

20NM65 Datasheet (663.31 KB)

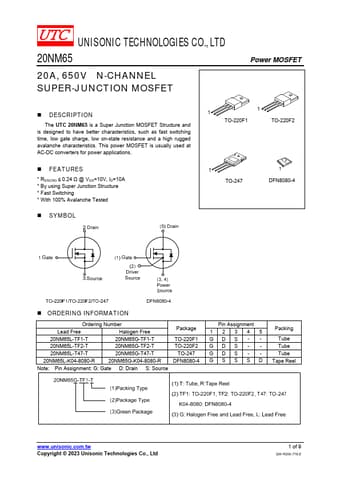

20NM65 Datasheet Preview — Preview of 20NM65 PDF

Datasheet Details

Part number:

20NM65

Manufacturer:

UTC

File Size:

663.31 KB

Description:

N-channel power mosfet.
