75323 Datasheet - UTC

75323, MULTIPLE RS-232 DRIVERS AND RECEIVERS

The UTC 75323 provides a rugged, low-cost effectiveness performance due to the circuits consisting of bipolar ones, incorporating five drivers and three receivers. It is characterized with less required external components, board spaces and an easy interface between UART and serial-port connector fo.

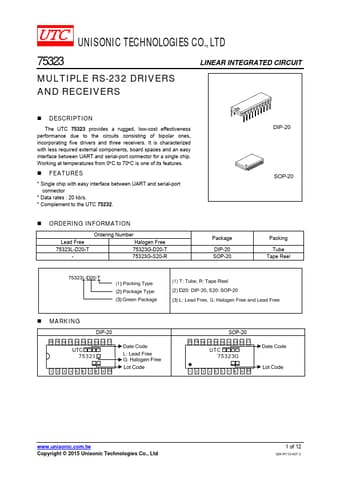

Datasheet Preview Page 1

75323 Datasheet Preview — Preview of 75323 PDF

75323 Datasheet Preview Page 2

75323 Datasheet Preview Page 3

Datasheet Details

Part number:

75323

Manufacturer:

UTC

File Size:

377.92 KB

Description:

MULTIPLE RS-232 DRIVERS AND RECEIVERS

75323 Features

* FEATURES

* Single chip with easy interface between UART and serial-port connector

* Data rates : 20 kb/s.

* Complement to the UTC 75232.

* ORDERING INFORMATION Lead Free 75323L-D20-T - Ordering Number Halogen Free 75323G-D20-T 75323G-S20-R Package DIP-20 SOP-20 Packing Tu
