US223 HIGH-SIDE POWER SWITCHES

US223 Description

UNISONIC TECHNOLOGIES CO., LTD US223 Preliminary HIGH-SIDE POWER SWITCHES WITH FLAG CMOS IC * .
The UTC US223 are low voltage cost-effective high-side power switches with flag function.

US223 Features

* Input Voltage Varies From 3.5V to 5.5V
* Built-in N-MOSFET
* Output Can Be Forced Higher Than Input (Off-State)
* Typical Low Supply Current: - Switch On: 25μA (TYP) - Switch Off: 0.1μA (TYP)
* Open-Drain Fault Flag Output To Indicate Fault Conditions
* Protection Circuit

US223 Applications

* The build-in N-MOSFET’s RDS(ON) which meets the requirements of USB voltage drop is as low as 80mΩ. The UTC US223 contains a charge pump circuitry to drive the internal MOSFET switch and also incorporate such protection circuits: soft-start circuit protect these devices from being damaged by limiti

📥 Download Datasheet

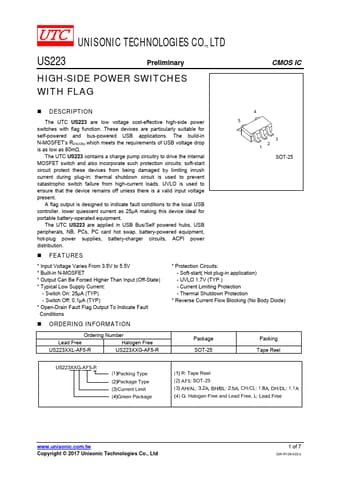

Preview of US223 PDF
