CHA2394-99F, 36-40GHz Very Low Noise High Gain Amplifier

The CHA2394-99F is a three-stage monolithic low noise amplifier. It is designed for a wide range of applications, from military to commercial communication systems. Vds Vds The circuit is manufactured with a pHEMT IN OUT process 0.25µm gate length, via holes through the substrate, air bridges .

datasheet Preview Page 1 from Datasheet4u.com

CHA2394-99F-UnitedMonolithicSemiconductors.pdf

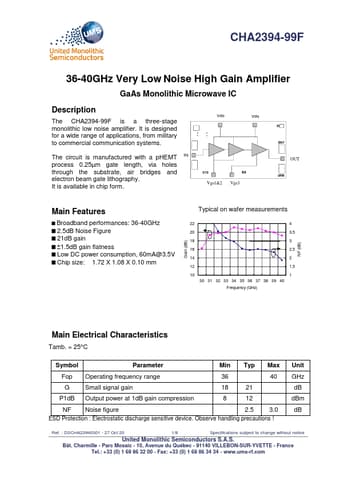

CHA2394-99F Datasheet Preview — Preview of CHA2394-99F PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

CHA2394-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

203.63 KB

Description:

36-40GHz Very Low Noise High Gain Amplifier

CHA2394-99F Features

* Broadband performances: 36-40GHz

* 2.5dB Noise Figure

* 21dB gain

* 1.5dB gain flatness

* Low DC power consumption, 60mA@3.5V

* Chip size: 1.72 X 1.08 X 0.10 mm Typical on wafer measurements 22 4 20 3,5 18 3 16 2,5 14 2 12 1,5 10 1 30 31 32 33 34 35 36 37 3
