AZ23B2V4 - Small Signal Zener Diode

Product Overview

Vishay

📥 Download Datasheet

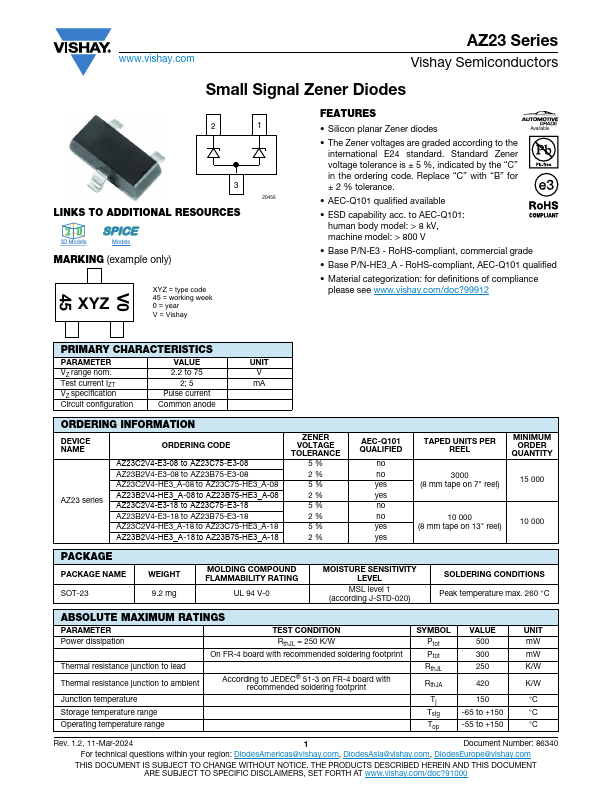

AZ23B2V4 Small Signal Zener Diode by Vishay - Datasheet Preview — Datasheet preview – AZ23B2V4

Datasheet Details

Part number	AZ23B2V4
Manufacturer	Vishay
File Size	138.57 KB
Description	Small Signal Zener Diode
Datasheet	AZ23B2V4 Datasheet
Note	This datasheet PDF includes multiple part numbers: AZ23B2V4, AZ23C2V7. Please refer to the document for exact specifications by model.

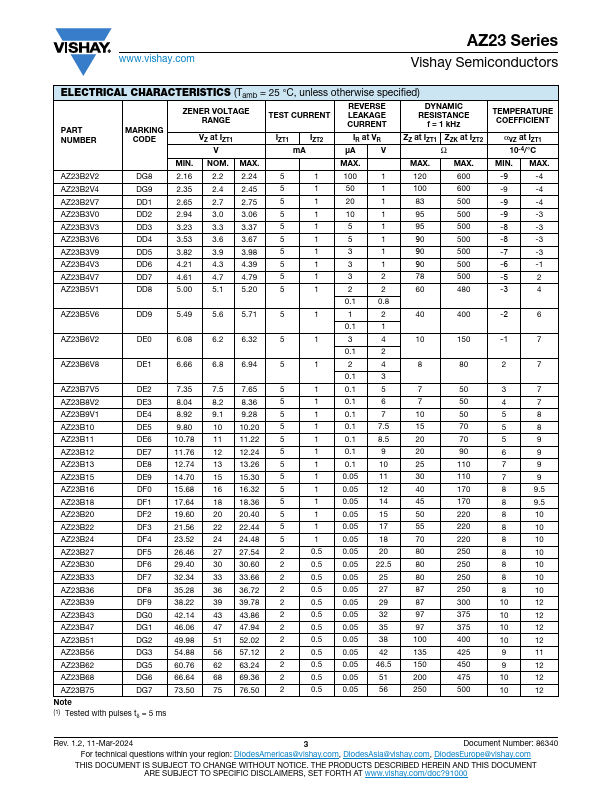

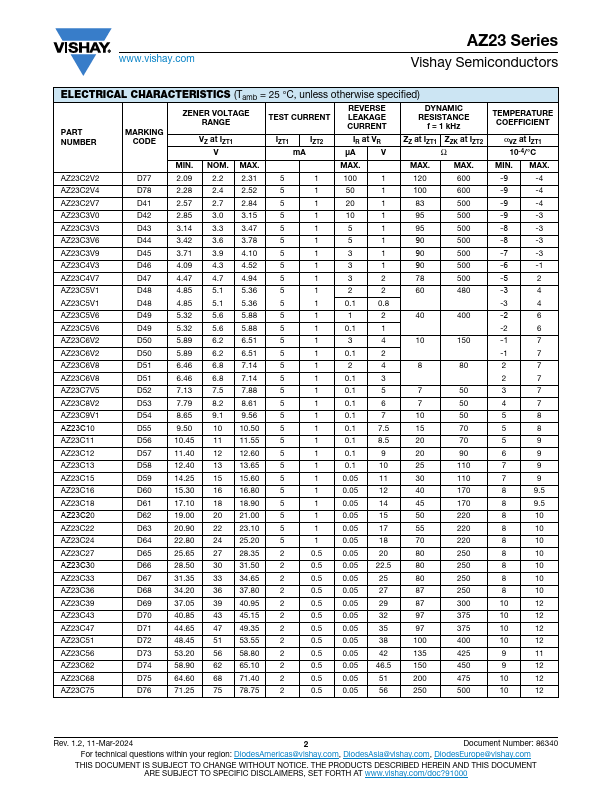

Additional preview pages of the AZ23B2V4 datasheet.

Product details

Features

Silicon planar Zener diodes Available.
The Zener voltages are graded according to the international E24 standard. Standard Zener voltage tolerance is ± 5 %, indicated by the “C” in the ordering code. Replace “C” with “B” for ± 2 % tolerance.
AEC-Q101 qualified available.
ESD capability acc. to AEC-Q101: human body model: > 8 kV, machine model: > 800 V.
Base P/N-E3 - RoHS-compliant, commercial grade.
Base P/N-HE3_A - RoHS-compliant, A.
