CNY75GB - Optocoupler / Phototransistor

This page provides the datasheet information for the CNY75GB, a member of the CNY75GA Optocoupler / Phototransistor family.

Description

The CNY75A, CNY75B, CNY75C, CNY75GA, CNY75GB, CNY75GC consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 6 pin plastic dual inline package.

UL1577, file no.

BSI: BS EN 41003, BS EN 60095 (B

Features

  • Isolation materials according to UL 94-VO.
  • Pollution degree 2 (DIN/VDE 0110/resp. IEC 60664).
  • Climatic classification 55/110/21 (IEC 60068 part 1).
  • Low temperature coefficient of CTR.
  • CTR offered in 3 groups.
  • Rated isolation voltage (RMS includes DC) VIOWM = 600 VRMS (848 V peak).
  • Rated recurring peak voltage (repetitive) VIORM = 600 VRMS.
  • Rated impulse vo.

📥 Download Datasheet

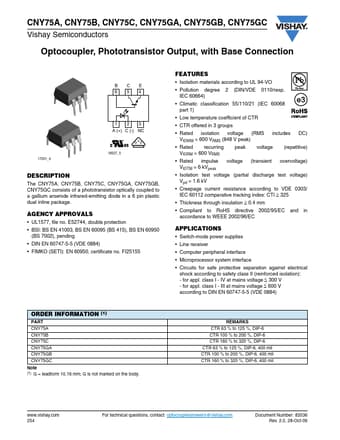

Datasheet preview – CNY75GB
