FR301 3.0A Fast Recovery Glass Passivated Rectifiers

📥 Download Datasheet Datasheet Preview Page 1

Description

3.0A Fast Recovery Glass Passivated Rectifiers-50V~1000V FR301 THRU FR307 PRIMARY CHARACTERISTIC VRRM 50V,100V,200V,400V 600V,800V,1000V IO .0A.
only.

📥 Download Datasheet

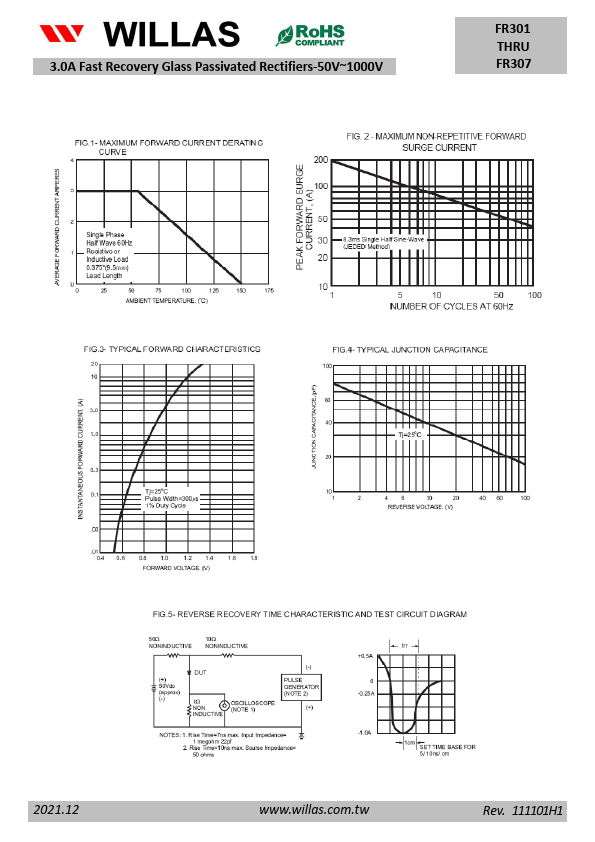

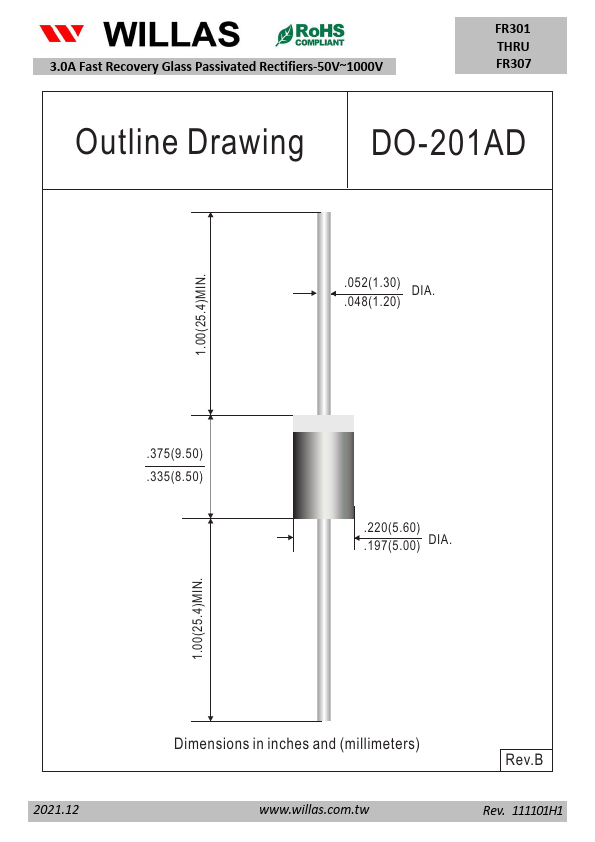

Preview of FR301 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FR301
Manufacturer
WILLAS
File Size
1.03 MB
Datasheet
FR301-WILLAS.pdf
Description
3.0A Fast Recovery Glass Passivated Rectifiers

Features

* Fast switching for high efficiency
* Low reverse leakage
* High forward surge current capability

Applications

* and actual performance may vary over time. WILLAS does not assume any liability arising out of the application or use of any product or circuit. This is the preliminary specification. WILLAS products are not designed, intended or authorized for use in medical, life-saving implant or other applicatio
