BT155Z-1200T - SCR

Name: BT155Z-1200T
SKU: BT155Z-1200T-1295136

WeEn

📥 Download Datasheet

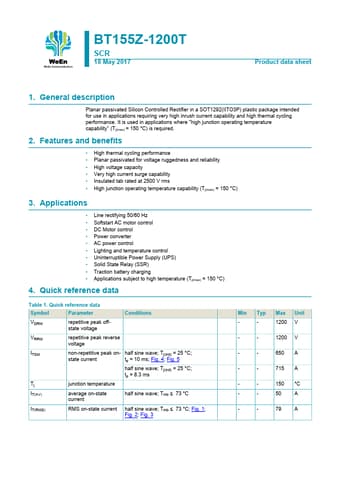

BT155Z-1200T Datasheet Preview — Preview of BT155Z-1200T PDF

Datasheet Details

Part number	BT155Z-1200T
Manufacturer	WeEn
File Size	876.66 KB
Description	SCR
Datasheet	BT155Z-1200T-WeEn.pdf

BT155Z-1200T Product details

Description

Planar passivated Silicon Controlled Rectifier in a SOT1292(IITO3P) plastic package intended for use in applications requiring very high inrush current capability and high thermal cycling performance.

Features

High thermal cycling performance.
Planar passivated for voltage ruggedness and reliability.
High voltage capacity.
Very high current surge capability.
Insulated tab rated at 2500 V rms.
High junction operating temperature capability (Tj(max) = 150 °C) 3.
