BT150S-600R Datasheet - WeEn

BT150S-600R, SCR

BT150S-600R SCR 3 August 2018 Product data sheet 1.General .
Planar passivated SCR with sensitive gate in a TO252 (DPAK) surface mountable plastic package.

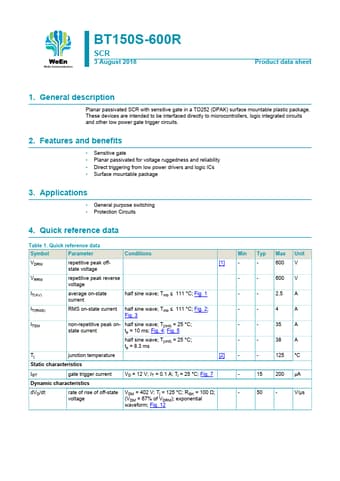

datasheet Preview Page 1 from Datasheet4u.com

BT150S-600R-WeEn.pdf

BT150S-600R Datasheet Preview — Preview of BT150S-600R PDF

Datasheet Details

Part number:

BT150S-600R

Manufacturer:

WeEn

File Size:

824.25 KB

Description:

SCR

Features

* Sensitive gate
* Planar passivated for voltage ruggedness and reliability
* Direct triggering from low power drivers and logic ICs

Applications

* General purpose switching
* Protection Circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VDRM repetitive peak off- [1] state voltage VRRM repetitive peak reverse voltage IT(AV) average on-state current half sine wave; Tmb ≤ 111
