WSB5518W - Schottky Barrier Diode

Features

  • 0.5 A Average rectified forward current.
  • Low forward voltage, low leakage current.
  • Small package SOD-323 Http://www. sh-willsemi. com SOD-323.

📥 Download Datasheet

Datasheet Details

Part number WSB5518W
Manufacturer WillSEMI
File Size 326.66 KB
Description Schottky Barrier Diode
Datasheet download datasheet WSB5518W Datasheet

📁 Similar Datasheet

  • WSB5503W - Middle Power Schottky Barrier Diode (Will Semiconductor)
  • WSB06200AT - High Voltage Power Schottky Rectifier (Weitron)
  • WSB1151 - PNP EPITAXIAL SILICON TRANSISTOR (Wooseok)
  • WSB6.8D - Transient Voltage Suppressors (Weitron)
  • WSB6.8S - Transient Voltage Suppressors (Weitron)
  • WSBE8518 - Power Metal Strip Shunt Resistor (Vishay)
  • WSBE8536 - Power Metal Strip Shunt Resistor (Vishay)
  • WSBM8518 - Battery Shunt Resistor (Vishay)
  • WSBS5216 - Battery Shunt Resistor (Vishay)
  • WSBS8518 - Battery Shunt Resistor (Vishay)
Other Datasheets by WillSEMI

Full PDF Text Transcription

Click to expand full text

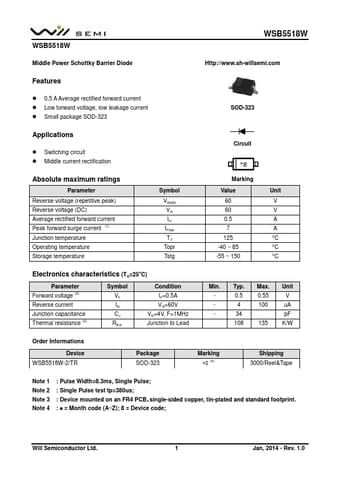

WSB5518W WSB5518W Middle Power Schottky Barrier Diode Features  0.5 A Average rectified forward current  Low forward voltage, low leakage current  Small package SOD-323 Http://www.sh-willsemi.com SOD-323 Applications  Switching circuit  Middle current rectification Circuit Absolute maximum ratings Parameter Reverse voltage (repetitive peak) Reverse voltage (DC) Average rectified forward current Peak forward surge current (1) Junction temperature Operating temperature Storage temperature Symbol VRRM VR IO IFSM TJ Topr Tstg Marking Value 60 60 0.5 7 125 -40 ~ 85 -55 ~ 150 Unit V V A A OC OC OC Electronics characteristics (TA=25oC) Parameter Forward voltage (2) Reverse current Junction capacitance Thermal resistance (3) Symbol VF IR CJ RθJL Condition IF=0.
