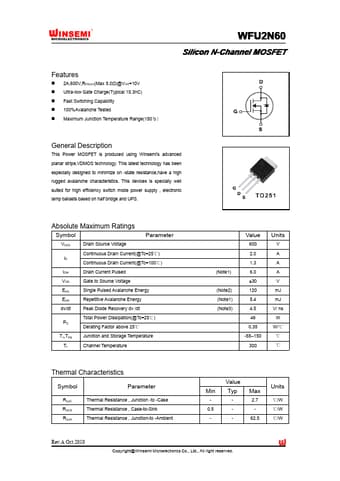

WFU2N60
Features
- 2A,600V,RDS(on)(Max 5.0Ω)@VGS=10V
- Ultra-low Gate Charge(Typical 15.3n C)
- Fast Switching Capability
- 100%Avalanche Tested
- Maximum Junction Temperature Range(150℃)
Silicon N-Channel MOSFET
General Description
This Power MOSFET is produced using Winsemi's advanced planar stripe,VDMOS technology. This latest technology has been especially designed to minimize on -state resistance,have a high rugged avalanche characteristics. This devices is specially well suited for high efficiency switch mode power supply , electronic lamp ballasts based on half bridge and UPS.
Absolute Maximum Ratings
Symbol
Parameter
VDSS ID
Drain Source Voltage Continuous Drain Current(@Tc=25℃) Continuous Drain Current(@Tc=100℃)
IDM Drain Current Pulsed
VGS Gate to Source Voltage
EAS Single Pulsed Avalanche Energy
EAR Repetitive Avalanche Energy dv/dt
Peak Diode Recovery dv /dt
Total Power Dissipation(@Tc=25℃) PD
Derating Factor above 25℃
TJ,Tstg
Junction...
