WST3400 Datasheet - Winsok

WST3400 N-Ch MOSFET

The WST3400 is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the small power switching and load switch applications. The WST3400 meet the RoHS and Green Product requirement with full function reliability approved.

WST3400 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent Cdv/dt effect decline z Green Device Available Product Summery BVDSS RDSON ID 30V 18mΩ 7A Applications z High Frequency Point-of-Load Synchronous s Small power switching for MB/NB/UMPC/VGA z Networking DC-DC

WST3400 Datasheet (2.34 MB)

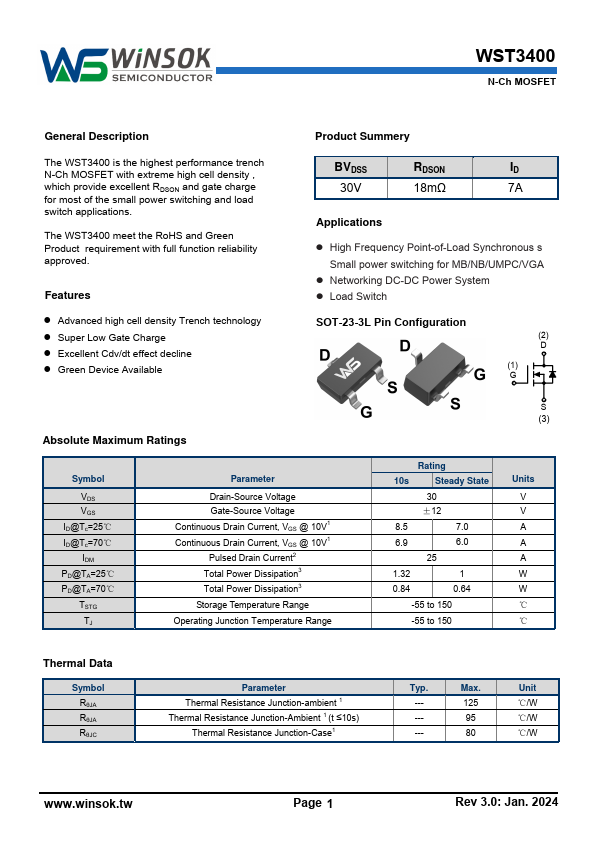

Preview of WST3400 PDF

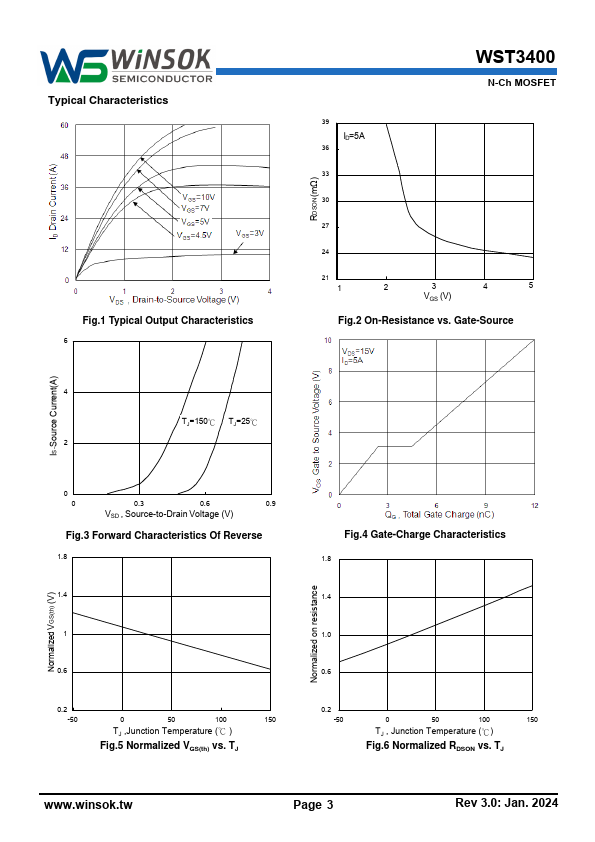

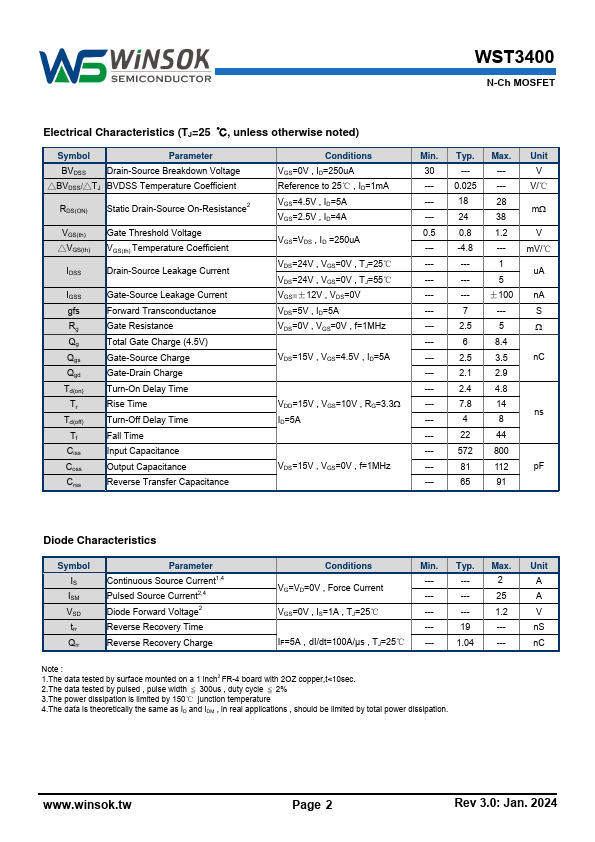

WST3400 Datasheet Preview Page 2 WST3400 Datasheet Preview Page 3

Datasheet Details

Part number:

WST3400

Manufacturer:

Winsok

File Size:

2.34 MB

Description:

N-ch mosfet.
