WST4040 Datasheet - Winsok

WST4040 N-Ch MOSFET

The WST4040 is the highest performance trench N-ch MOSFETs with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WST4040 meet the RoHS and Green Product requirement,100% EAS guaranteed with full function reliabili.

WST4040 Features

* z Advanced high cell density Trench technology z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Product Summery BVDSS 40V RDSON 35mΩ ID 5.8A Applications z High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/VGA z Networ

WST4040 Datasheet (2.31 MB)

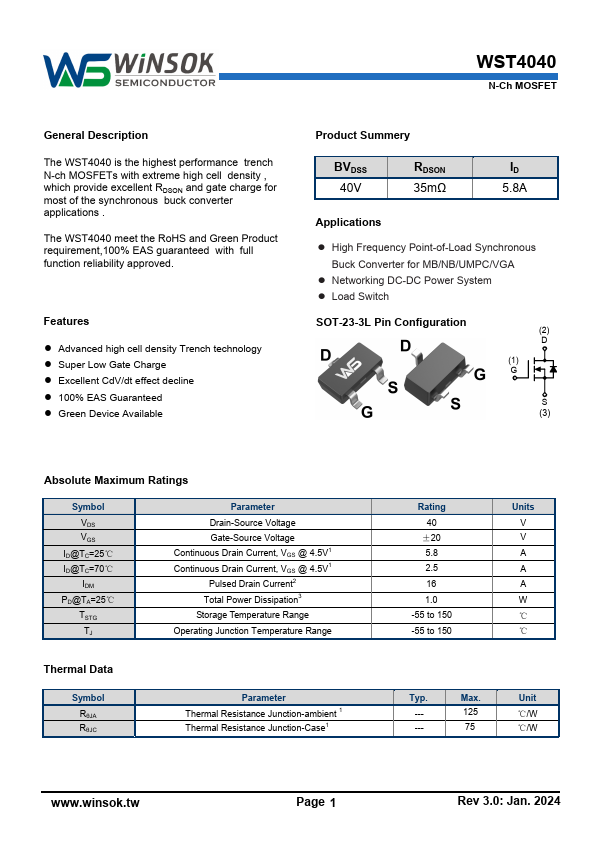

Preview of WST4040 PDF

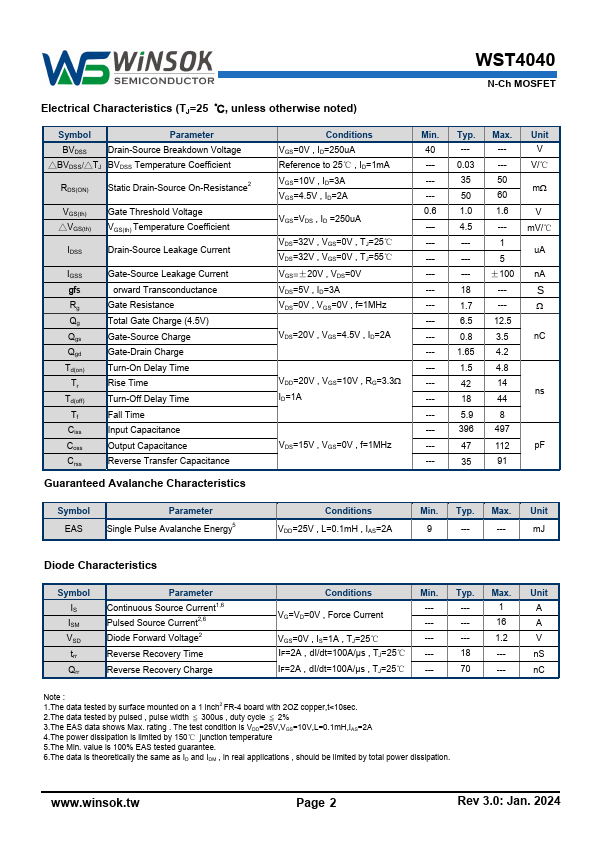

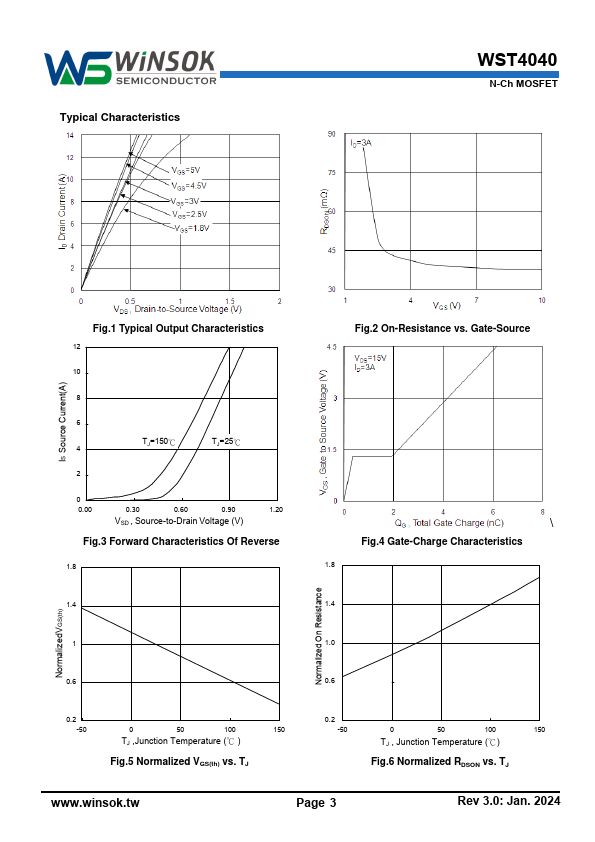

WST4040 Datasheet Preview Page 2 WST4040 Datasheet Preview Page 3

Datasheet Details

Part number:

WST4040

Manufacturer:

Winsok

File Size:

2.31 MB

Description:

N-ch mosfet.
