WSH315 Datasheet - Winson

WSH315, Linear Hall Effect Sensor

: The WSH315 is a new version of WSH135 with better measuring range and thermal shift. It integrates Hall sensing element, linear amplifer, sensitivity controller and emitter follower output stage.It accurately tracks extremely small change in magnetic flux density *generally too small to op.

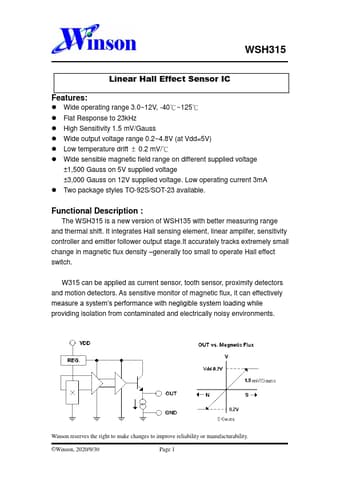

Datasheet Preview Page 1

WSH315-WinsonSemiconductor.pdf

Preview of WSH315 PDF
WSH315 Datasheet Preview Page 2 WSH315 Datasheet Preview Page 3

Datasheet Details

Part number:

WSH315

Manufacturer:

Winson

File Size:

793.00 KB

Description:

Linear Hall Effect Sensor

WSH315 Features

* Wide operating range 3.0~12V, -40℃~125℃

* Flat Response to 23kHz

* High Sensitivity 1.5 mV/Gauss

* Wide output voltage range 0.2~4.8V (at Vdd=5V)

* Low temperature drift ± 0.2 mV/℃

* Wide sensible magnetic field range on different supplied voltage ±1,500 Gauss on 5V suppli
