LM2675
SNVS129F – MAY 2004 – REVISED JUNE 2016

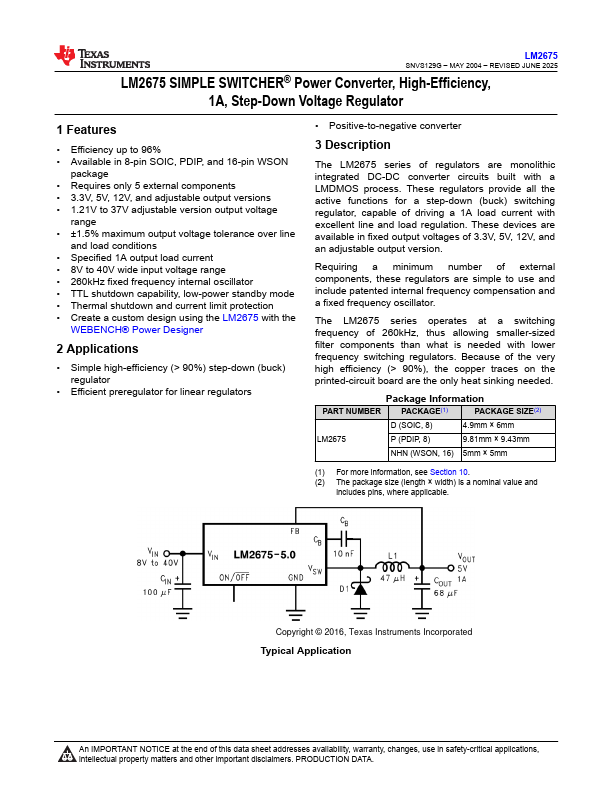

LM2675 SIMPLE SWITCHER® Power Converter High Efficiency
1-A Step-Down Voltage Regulator
1 Features
1 Efficiency up to 96%
• Available in 8-Pin SOIC, PDIP, and 16-Pin WSON
Package
• Requires only 5 External Components
• 3.3-V, 5-V, 12-V, and Adjustable Output Versions
• Adjustable Version Output Voltage Range: 1.21 V
to 37 V
• ±1.5% Maximum Output Voltage Tolerance Over
Line and Load Conditions
• Ensured 1-A Output Load Current
• Wide Input Voltage Range: 8 V to 40 V
• 260-kHz Fixed Frequency Internal Oscillator
• TTL Shutdown Capability, Low-Power Standby
Mode
• Thermal Shutdown and Current Limit Protection
2 Applications
• Simple High Efficiency (>90%) Step-Down (Buck)
Regulator
• Efficient Preregulator for Linear Regulators
• Positive-to-Negative Converter
3 Description
The LM2675 series of regulators are monolithic
integrated DC-DC converter circuits built with a
LMDMOS process. These regulators provide all the
active functions for a step-down (buck) switching
regulator, capable of driving a 1-A load current with
excellent line and load regulation. These devices are
available in fixed output voltages of 3.3 V, 5 V, 12 V,
and an adjustable output version.
Requiring a minimum number of external
components, these regulators are simple to use and
include patented internal frequency compensation
and a fixed frequency oscillator.
The LM2675 series operates at a switching frequency
of 260 kHz, thus allowing smaller-sized filter
components than what would be needed with lower
frequency switching regulators. Because of its very
high efficiency (>90%), the copper traces on the
printed-circuit board are the only heat sinking needed.

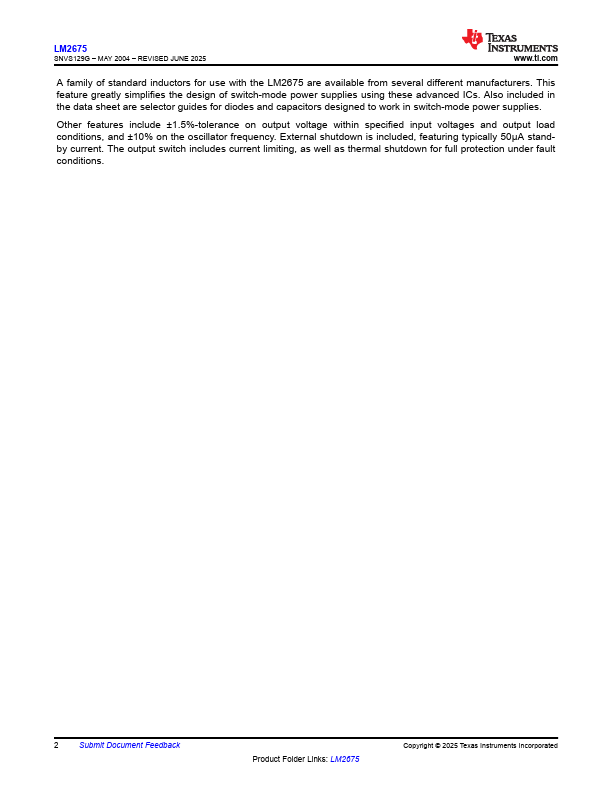

Device Information(1)
PART NUMBER
PACKAGE
BODY SIZE (NOM)
SOIC (8)
5.00 mm × 6.20 mm
LM2675
PDIP (8)
10.16 mm × 6.60 mm
WSON (16)
5.00 mm × 5.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Typical Application
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.




etcTI

LM2675 Datasheet Preview

LM2675 Datasheet

1-A Step-Down Voltage Regulator

No Preview Available !

LM2675
SNVS129F – MAY 2004 – REVISED JUNE 2016
www.ti.com
Table of Contents
1 Features .................................................................. 1
2 Applications ........................................................... 1
3 Description ............................................................. 1
4 Revision History..................................................... 2
5 Description (continued)......................................... 3
6 Pin Configuration and Functions ......................... 3
7 Specifications......................................................... 4
7.1 Absolute Maximum Ratings ...................................... 4
7.2 ESD Ratings.............................................................. 4
7.3 Recommended Operating Conditions....................... 4
7.4 Thermal Information .................................................. 4
7.5 Electrical Characteristics – 3.3 V .............................. 5
7.6 Electrical Characteristics – 5 V ................................. 5
7.7 Electrical Characteristics – 12 V ............................... 5
7.8 Electrical Characteristics – Adjustable...................... 6
7.9 Electrical Characteristics – All Output Voltage
Versions ..................................................................... 6
7.10 Typical Characteristics ............................................ 7
7.11 Typical Characteristics – Fixed Output Voltage
Versions ..................................................................... 9
8 Detailed Description ............................................ 10
8.1 Overview ................................................................. 10
8.2 Functional Block Diagram ....................................... 10
8.3 Feature Description................................................. 10
8.4 Device Functional Modes........................................ 11
9 Application and Implementation ........................ 12
9.1 Application Information............................................ 12
9.2 Typical Application .................................................. 13
10 Power Supply Recommendations ..................... 24
11 Layout................................................................... 25
11.1 Layout Guidelines ................................................. 25
11.2 Layout Examples................................................... 25
12 Device and Documentation Support ................. 27
12.1 Documentation Support ........................................ 27
12.2 Receiving Notification of Documentation Updates 27
12.3 Community Resources.......................................... 27
12.4 Trademarks ........................................................... 27
12.5 Electrostatic Discharge Caution ............................ 27
12.6 Glossary ................................................................ 27
13 Mechanical, Packaging, and Orderable
Information ........................................................... 27
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision E (June 2005) to Revision F
Page
• Added ESD Ratings table, Feature Description section, Device Functional Modes, Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section .................................................................................................. 1
• Deleted all instances of the computer design software LM267X Made Simple (version 6.0) ................................................ 1
2
Submit Documentation Feedback
Product Folder Links: LM2675
Copyright © 2004–2016, Texas Instruments Incorporated
