LM3017 High Efficiency Low-Side Controller

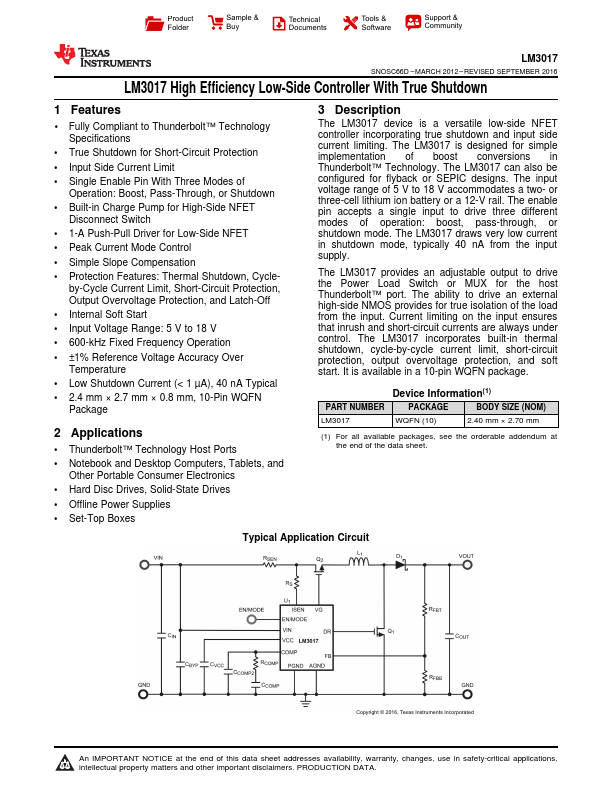

📥 Download Datasheet Datasheet Preview Page 1

Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community LM3017 SNOSC66D * MARCH 2012 * REVISED SEPTE.
The LM3017 device is a versatile low-side NFET controller incorporating true shutdown and input side current limiting.

📥 Download Datasheet

Preview of LM3017 PDF

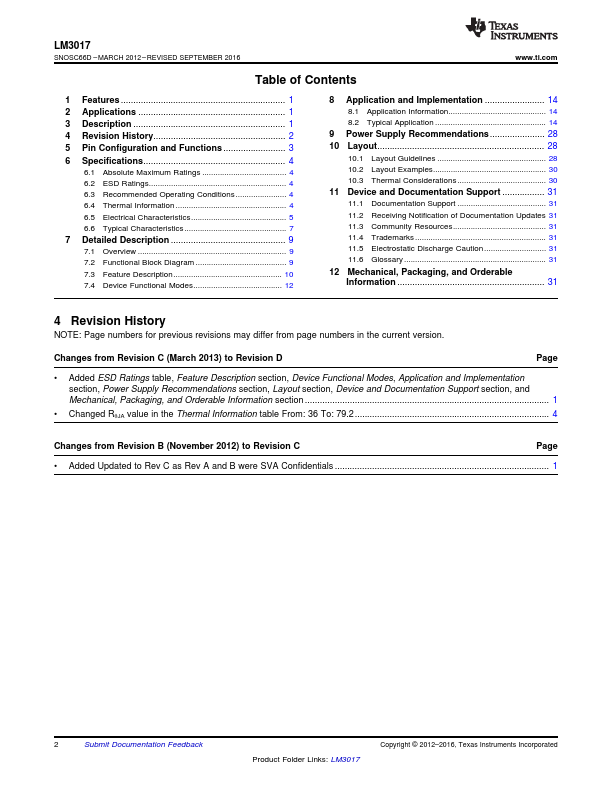

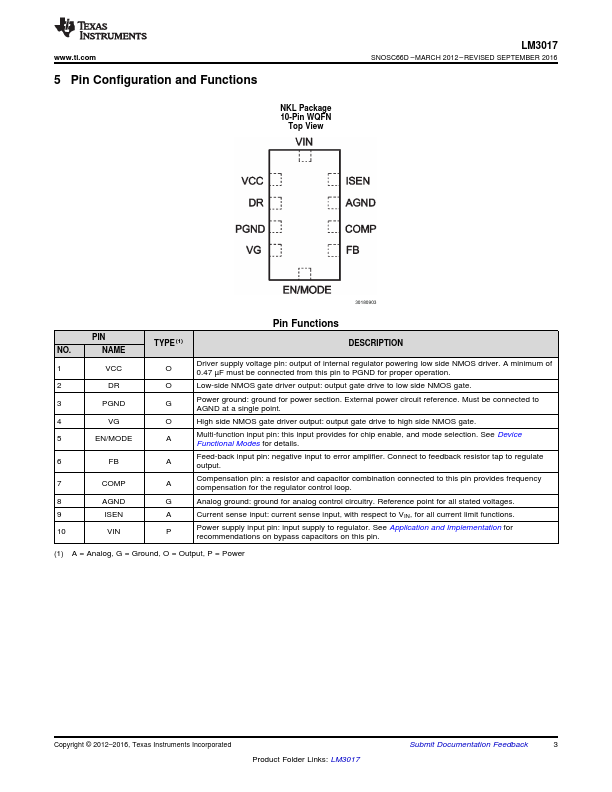

datasheet Preview Page 2 datasheet Preview Page 3

Features

* 1 Fully Compliant to Thunderbolt™ Technology Specifications
* True Shutdown for Short-Circuit Protection
* Input Side Current Limit
* Single Enable Pin With Three Modes of Operation: Boost, Pass-Through, or Shutdown
* Built-in Charge Pump for High-Side NFET D

Applications

* Thunderbolt™ Technology Host Ports
* Notebook and Desktop Computers, Tablets, and Other Portable Consumer Electronics
* Hard Disc Drives, Solid-State Drives
* Offline Power Supplies
