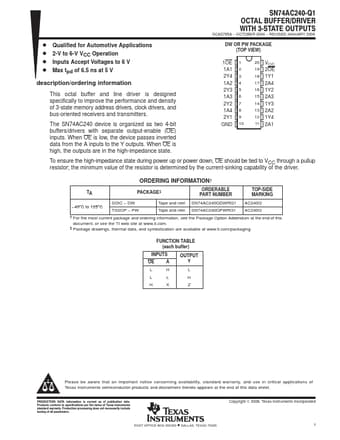

SN74AC240ĆQ1 OCTAL BUFFER/DRIVER WITH 3ĆSTATE OUTPUTS
SCAS785A − OCTOBER 2004 − REVISED JANUARY 2008
D Qualified for Automotive Applications D 2-V to 6-V VCC Operation D Inputs Accept Voltages to 6 V D Max tpd of 6.5 ns at 5 V
description/ordering information
This octal buffer and line driver is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.
The SN74AC240 device is organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
SN74AC240-Q1 Datasheet
