TLV314 - Operational Amplifier

Description

The TLV314 family of single-, dual-, and quadchannel operational amplifiers represents a new generation of low-power, general-purpose operational amplifiers.

Features

  • 1 Low Offset Voltage: 0.75 mV (typ).
  • Low Input Bias Current: 1 pA (typ).
  • Wide Supply Range: 1.8 V to 5.5 V.
  • Rail-to-Rail Input and Output.
  • Gain Bandwidth: 3 MHz.
  • Low IQ: 250 µA/Ch (max).
  • Low Noise: 16 nV/√Hz at 1 kHz.
  • Internal RF/EMI Filter.
  • Extended Temperature Range:.
  • 40°C to +125°C 2.

📥 Download Datasheet

📁 Similar Datasheet

  • TLV3011 - SOT23 Comparator (Burr-Brown)
  • TLV3012 - SOT23 Comparator (Burr-Brown)
  • TLV320AIC31 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC3104 - LOW-POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC32 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320AIC33 - LOW POWER STEREO AUDIO CODEC (Burr-Brown)
  • TLV320DAC32 - LOW POWER STEREO AUDIO DAC (Burr-Brown)
  • TLV3491 - 1.8V/ Nanopower PUSH-PULL OUTPUT COMPARATOR (Burr-Brown Corporation)
  • TLV3491AID - 1.8V/ Nanopower PUSH-PULL OUTPUT COMPARATOR (Burr-Brown Corporation)
  • TLV3491AIDBVR - 1.8V/ Nanopower PUSH-PULL OUTPUT COMPARATOR (Burr-Brown Corporation)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

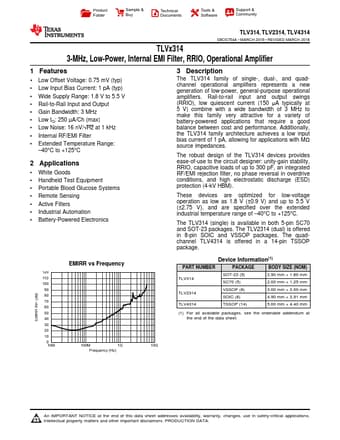

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TLV314, TLV2314, TLV4314 SBOS754A – MARCH 2016 – REVISED MARCH 2016 TLVx314 3-MHz, Low-Power, Internal EMI Filter, RRIO, Operational Amplifier 1 Features •1 Low Offset Voltage: 0.75 mV (typ) • Low Input Bias Current: 1 pA (typ) • Wide Supply Range: 1.8 V to 5.
