TPS2501 - INTEGRATED USB POWER SWITCH

This page provides the datasheet information for the TPS2501, a member of the TPS2500 INTEGRATED USB POWER SWITCH family.

Description

The TPS2500 and TPS2501 provide an integrated solution to meet USB 5-V power requirements from a 1.8-V to 5.25-V input supply.

Features

  • 1.
  • 23 Integrated Synchronous Boost Converter and USB Current-Limit Power Switch.
  • Light-Load, High-Efficiency Eco-mode™ Control Scheme (TPS2500) or Constant Frequency (TPS2501).
  • 1.8-V to 5.25-V Input Voltage (2.2-V Minimum Start-Up Voltage).
  • Adjustable USB Current Limit.
  • 130 mA to 1400 mA (Typical).
  • Accurate 20% Current Limit at 1.4-A Setting.
  • Powers up to Two Standard USB Ports.
  • Auxiliary 5.1-V Output.
  • Fast Overcurre.

📥 Download Datasheet

Datasheet preview – TPS2501

Datasheet Details

Part number TPS2501
Manufacturer Texas Instruments
File Size 2.78 MB
Description INTEGRATED USB POWER SWITCH
Datasheet download datasheet TPS2501 Datasheet
Additional preview pages of the TPS2501 datasheet.

📁 Similar Datasheet

  • TPS2534 - Dual Channel Thermopile (PerkinElmer Optoelectronics)
  • TPS20 - high reliable pressure transmitter (Konics)
  • TPS232 - Thermopile Sensor (PerkinElmer Optoelectronics)
  • TPS2398 - -48V Hot Swap Controller (ON Semiconductor)
  • TPS2399 - -48V Hot Swap Controller (ON Semiconductor)
  • TPS23B - Thermopile Sensor (PerkinElmer Optoelectronics)
  • TPS2405 - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2405A - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2409 - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
  • TPS2409A - 2W 6KVDC Isolated Dual Output DC/DC Converters (TOPPOWER)
Other Datasheets by Texas Instruments
  • TPS2500 - INTEGRATED USB POWER SWITCH
  • TPS2505 - Boost Converter/LDO
  • TPS2505B1 - Boost Converter/LDO
  • TPS2511 - USB Dedicated Charging Port Controller
  • TPS2511-Q1 - USB Dedicated Charging Port Controller
  • TPS2513 - USB Dedicated Charging Port Controller
  • TPS2513A - USB Dedicated Charging Port Controller
  • TPS2513A-Q1 - USB Dedicated Charging Port Controller

Full PDF Text Transcription

Click to expand full text

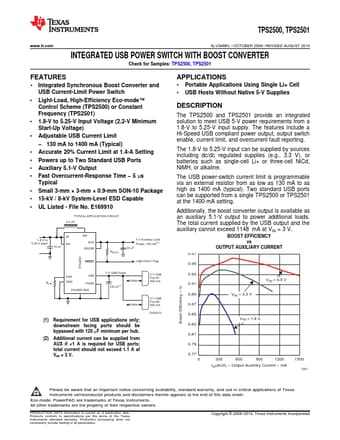

TPS2500, TPS2501 www.ti.com SLVS886C – OCTOBER 2008 – REVISED AUGUST 2010 INTEGRATED USB POWER SWITCH WITH BOOST CONVERTER Check for Samples: TPS2500, TPS2501 TPS2500 Boost Efficiency − % FEATURES 1 •23 Integrated Synchronous Boost Converter and USB Current-Limit Power Switch • Light-Load, High-Efficiency Eco-mode™ Control Scheme (TPS2500) or Constant Frequency (TPS2501) • 1.8-V to 5.25-V Input Voltage (2.2-V Minimum Start-Up Voltage) • Adjustable USB Current Limit – 130 mA to 1400 mA (Typical) • Accurate 20% Current Limit at 1.4-A Setting • Powers up to Two Standard USB Ports • Auxiliary 5.1-V Output • Fast Overcurrent-Response Time – 5 ms Typical • Small 3-mm × 3-mm × 0.9-mm SON-10 Package • 15-kV / 8-kV System-Level ESD Capable • UL Listed - File No.
