TVS3300 - 33-V Flat-Clamp Surge Protection Device

Description

The TVS3300 robustly shunts up to 35 A of IEC 61000-4-5 fault current to protect systems from high power transients or lightning strikes.

Features

  • 1 Protection Against 1 kV, 42 Ω IEC 61000-4-5 Surge Test for Industrial Signal Lines.
  • Max Clamping Voltage of 40 V at 35 A of 8/20 µs Surge Current.
  • Standoff Voltage: 33 V.
  • Tiny 1.1 mm2 WCSP and 4 mm2 SON Footprints.
  • Survives Over 4,000 Repetitive Strikes of 30 A 8/20 µs Surge Current at 125°C.
  • Robust Surge Protection.
  • IEC61000-4-5 (8/20 µs): 35 A.
  • IEC61643-321 (10/1000 µs): 4 A.
  • Low Leakage Current.
  • 19 nA.

📥 Download Datasheet

📁 Similar Datasheet

  • TVS3.6VAESPT - SURFACE MOUNT DEVICES (ETC)
  • TVS305 - TRANSIENT VOLTAGE SUPPRESORS (Microsemi Corporation)
  • TVS305 - TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • TVS310 - TRANSIENT VOLTAGE SUPPRESORS (Microsemi Corporation)
  • TVS310 - TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • TVS312 - TRANSIENT VOLTAGE SUPPRESORS (Microsemi Corporation)
  • TVS312 - TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • TVS315 - TRANSIENT VOLTAGE SUPPRESORS (Microsemi Corporation)
  • TVS315 - TRANSIENT VOLTAGE SUPPRESSORS (Digitron Semiconductors)
  • TVS318 - TRANSIENT VOLTAGE SUPPRESORS (Microsemi Corporation)
Other Datasheets by Texas Instruments
  • TVS2200 - 22-V Flat-Clamp Surge Protection

Full PDF Text Transcription

Click to expand full text

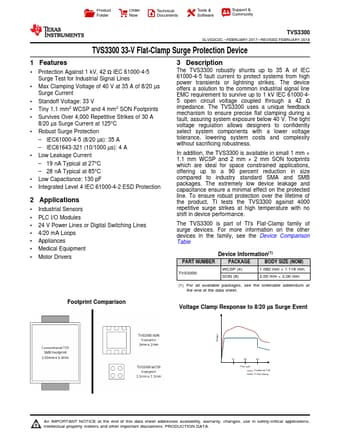

Product Folder Order Now Technical Documents Tools & Software Support & Community TVS3300 SLVSDO2C – FEBRUARY 2017 – REVISED FEBRUARY 2018 TVS3300 33-V Flat-Clamp Surge Protection Device 1 Features •1 Protection Against 1 kV, 42 Ω IEC 61000-4-5 Surge Test for Industrial Signal Lines • Max Clamping Voltage of 40 V at 35 A of 8/20 µs Surge Current • Standoff Voltage: 33 V • Tiny 1.
