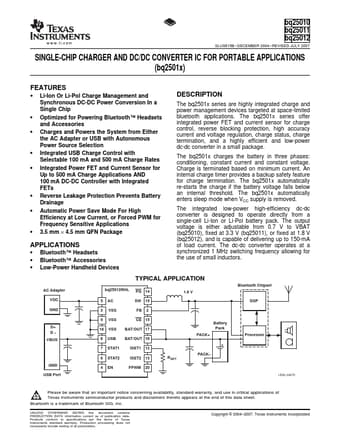

bq25011 - SINGLE-CHIP CHARGER AND DC/DC CONVERTER

Download the bq25011 datasheet PDF (bq25010 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single-chip charger and dc/dc converter.

Description

The bq2501x series are highly integrated charge and power management devices targeted at space-limited bluetooth applications.

Features

  • 1.
  • 2 Li-Ion Or Li-Pol Charge Management and Synchronous DC-DC Power Conversion In a Single Chip.
  • Optimized for Powering Bluetooth™ Headsets and Accessories.
  • Charges and Powers the System from Either the AC Adapter or USB with Autonomous Power Source Selection.
  • Integrated USB Charge Control with Selectable 100 mA and 500 mA Charge Rates.
  • Integrated Power FET and Current Sensor for Up to 500 mA Charge.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (bq25010-etcTI.pdf) that lists specifications for multiple related part numbers.
