74HC541

Manufacturer: Nexperia

74HC541 datasheet by Nexperia.

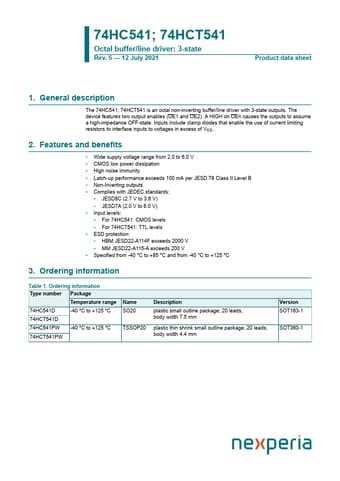

74HC541 datasheet preview

74HC541 Datasheet Details

Part number	74HC541
Datasheet	74HC541-nexperia.pdf
File Size	246.85 KB
Manufacturer	Nexperia
Description	Octal buffer/line driver

74HC541 Overview

74HCT541 is an octal non-inverting buffer/line driver with 3-state outputs.

74HC541 Key Features

Wide supply voltage range from 2.0 to 6.0 V
CMOS low power dissipation
High noise immunity
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Non-Inverting outputs
plies with JEDEC standards
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
Input levels
For 74HC541: CMOS levels
