74HC541-Q100 - Octal buffer/line driver

74HC541-Q100 Description

74HC541-Q100; 74HCT541-Q100 Octal buffer/line driver; 3-state Rev.2 * 12 July 2021 Product data sheet 1.General .
The 74HC541-Q100; 74HCT541-Q100 is an octal non-inverting buffer/line driver with 3-state outputs.

74HC541-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from -40 °C to +85 °C and from -40 °C to +125 °C
* Wide supply voltage range from 2.0 to 6.0 V
* CMOS low power dissipation
* High noise immunity
* Latch-up performanc

📥 Download Datasheet

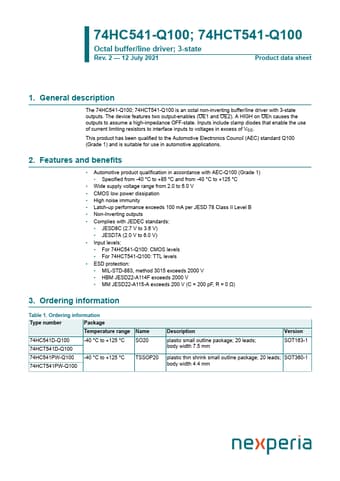

Preview of 74HC541-Q100 PDF
datasheet Preview Page 2 datasheet Preview Page 3
