74LVCH16373A-Q100 - 16-bit D-type transparent latch

Download the 74LVCH16373A-Q100 datasheet PDF (74LVC16373A-Q100 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 16-bit d-type transparent latch.

Description

The 74LVC16373A-Q100 and 74LVCH16373A-Q100 are 16-bit D-type transparent latches with 3-state outputs.

The devices can be used as two 8-bit transparent latches or a single 16-bit transparent latch.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Overvoltage tolerant inputs to 5.5 V.
  • Wide supply voltage range from 1.2 V to 3.6 V.
  • CMOS low power dissipation.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (74LVC16373A-Q100-nexperia.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

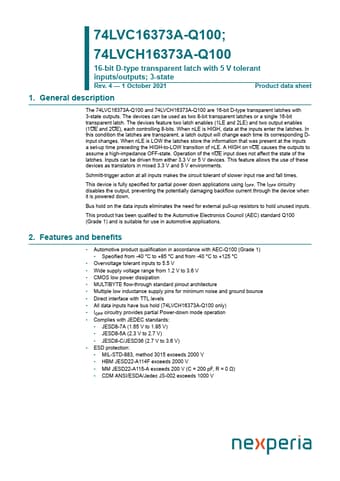

74LVC16373A-Q100; 74LVCH16373A-Q100 16-bit D-type transparent latch with 5 V tolerant inputs/outputs; 3-state Rev. 4 — 1 October 2021 Product data sheet 1. General description The 74LVC16373A-Q100 and 74LVCH16373A-Q100 are 16-bit D-type transparent latches with 3-state outputs. The devices can be used as two 8-bit transparent latches or a single 16-bit transparent latch. The devices feature two latch enables (1LE and 2LE) and two output enables (1OE and 2OE), each controlling 8-bits. When nLE is HIGH, data at the inputs enter the latches. In this condition the latches are transparent, a latch output will change each time its corresponding Dinput changes.
