BAS16L - High-speed switching diode

Nexperia

Download the BAS16L datasheet PDF. This datasheet also covers the BAS16 variant, as both devices belong to the same high-speed switching diode family and are provided as variant models within a single manufacturer datasheet.

General Description

High-speed switching diode, encapsulated in small SOT23 Surface-Mounted Device (SMD) plastic package.

Key Features

High switching speed: trr ≤ 4 ns.
Low capacitance.
Low leakage current.
Reverse voltage: VR ≤ 100 V.
Repetitive peak reverse voltage: VRRM ≤ 100 V 3.

📥 Download Datasheet

BAS16L high-speed switching diode by Nexperia - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BAS16-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BAS16L
Manufacturer	Nexperia
File Size	252.63 KB
Description	High-speed switching diode
Datasheet	BAS16L Datasheet

Full PDF Text Transcription for BAS16L (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for BAS16L. For precise diagrams, and layout, please refer to the original PDF.

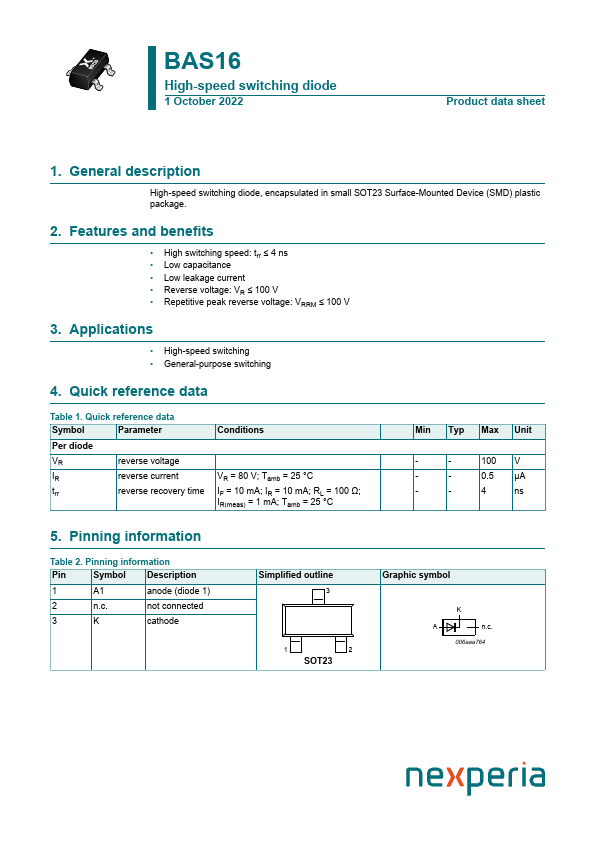

BAS16 High-speed switching diode 1 October 2022 Product data sheet 1. General description High-speed switching diode, encapsulated in small SOT23 Surface-Mounted Device (...

View more extracted text

switching diode, encapsulated in small SOT23 Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High switching speed: trr ≤ 4 ns • Low capacitance • Low leakage current • Reverse voltage: VR ≤ 100 V • Repetitive peak reverse voltage: VRRM ≤ 100 V 3. Applications • High-speed switching • General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IR reverse current trr reverse recovery time Conditions VR = 80 V; Tamb = 25 °C IF = 10 mA; IR = 10 mA; RL = 100 Ω; IR(meas) = 1 mA; Tamb = 25 °C Min Typ Max Unit - - 100 V - - 0.5 µA - - 4 ns
