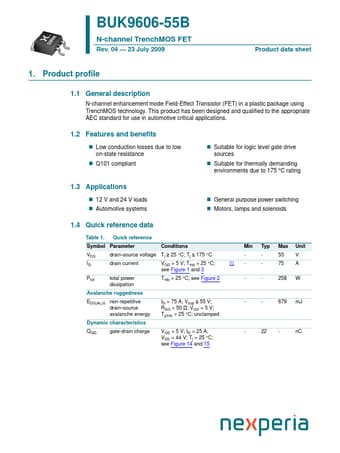

BUK9606-55B
BUK9606-55B is N-channel TrenchMOS FET manufactured by Nexperia.
description
N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using Trench MOS technology. This product has been designed and qualified to the appropriate AEC standard for use in automotive critical applications.
1.2 Features and benefits
- Low conduction losses due to low on-state resistance
- Q101 pliant
- Suitable for logic level gate drive sources
- Suitable for thermally demanding environments due to 175 °C rating
1.3 Applications
- 12 V and 24 V loads
- Automotive systems
- General purpose power switching
- Motors, lamps and solenoids
1.4 Quick reference data
Table 1. Quick reference
Symbol Parameter
Conditions
Min Typ Max Unit
VDS drain-source voltage Tj ≥ 25 °C; Tj ≤ 175 °C
- - 55 V
ID drain current
VGS = 5 V; Tmb = 25 °C; [1]
- - 75 A see Figure 1 and 3
Ptot total power dissipation
Tmb = 25 °C; see...
