NPS3005-Q100 Datasheet - nexperia

NPS3005-Q100 6A single channel load switch

NPS3005-Q100 is a single channel load switch with an adjustable soft start. It contains a 6 A continuous current rated N-channel MOSFET that can operate over an input voltage range of 0.5 V to 5.5 V. NPS3005-Q100 is controlled by an EN pin which supports down to 1.2 V control voltage. NPS3005-Q100 p.

NPS3005-Q100 Features

* Automotive product qualification in accordance with AEC-Q100

* Specified from -40 °C to +105 °C

* Bias voltage range: 1.5 V to 5.5 V

* Input voltage range: 0.5 V to 5.5 V

* Maximum continuous current (IMAX) : 6 A

* 15 mΩ (typical) on-resistance

NPS3005-Q100 Datasheet (2.02 MB)

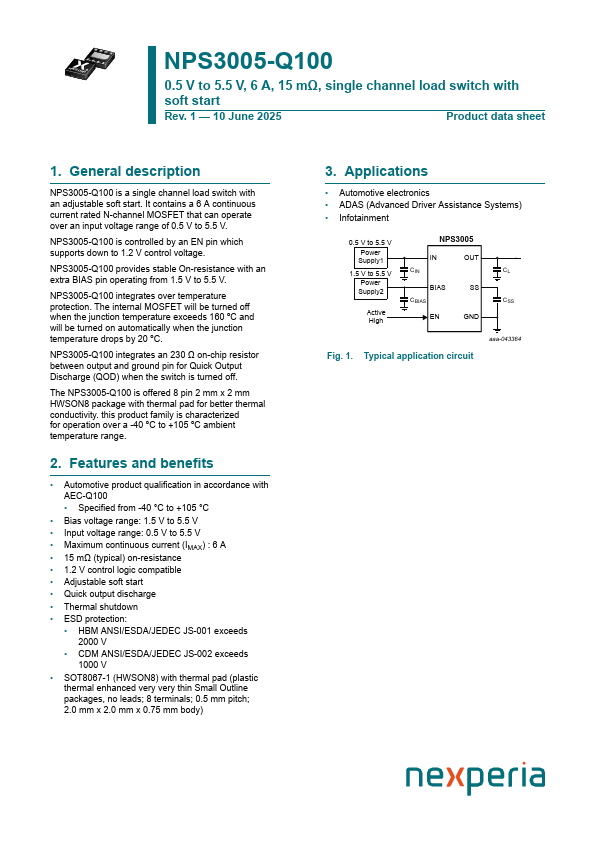

Preview of NPS3005-Q100 PDF

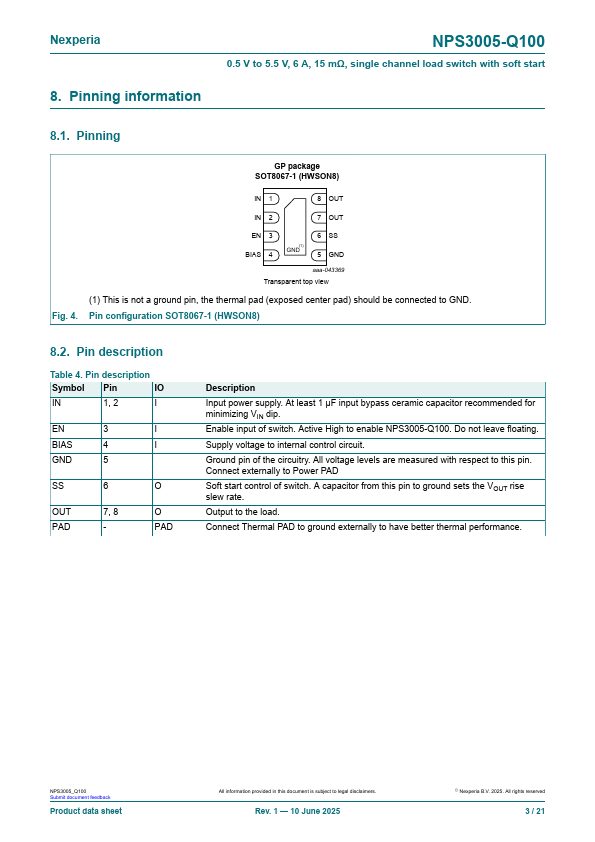

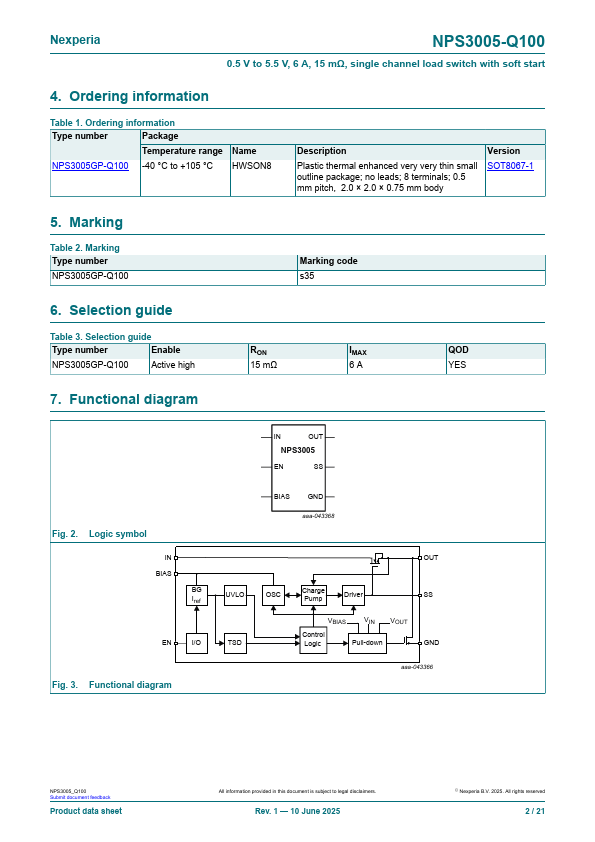

NPS3005-Q100 Datasheet Preview Page 2 NPS3005-Q100 Datasheet Preview Page 3

Datasheet Details

Part number:

NPS3005-Q100

Manufacturer:

nexperia ↗

File Size:

2.02 MB

Description:

6a single channel load switch.
