NPS3005 Datasheet - nexperia

NPS3005 6A single channel load switch

NPS3005 is a single channel load switch with an adjustable soft start. It contains a 6 A continuous current rated N-channel MOSFET that can operate over an input voltage range of 0.5 V to 5.5 V. NPS3005 is controlled by an EN pin which supports down to 1.2 V control voltage. NPS3005 provides stable .

NPS3005 Features

* Bias voltage range: 1.5 V to 5.5 V

* Input voltage range: 0.5 V to 5.5 V

* Maximum continuous current (IMAX) : 6 A

* 15 mΩ (typical) on-resistance

* 1.2 V control logic compatible

* Adjustable soft start

* Quick output discharge

* The

NPS3005 Datasheet (2.01 MB)

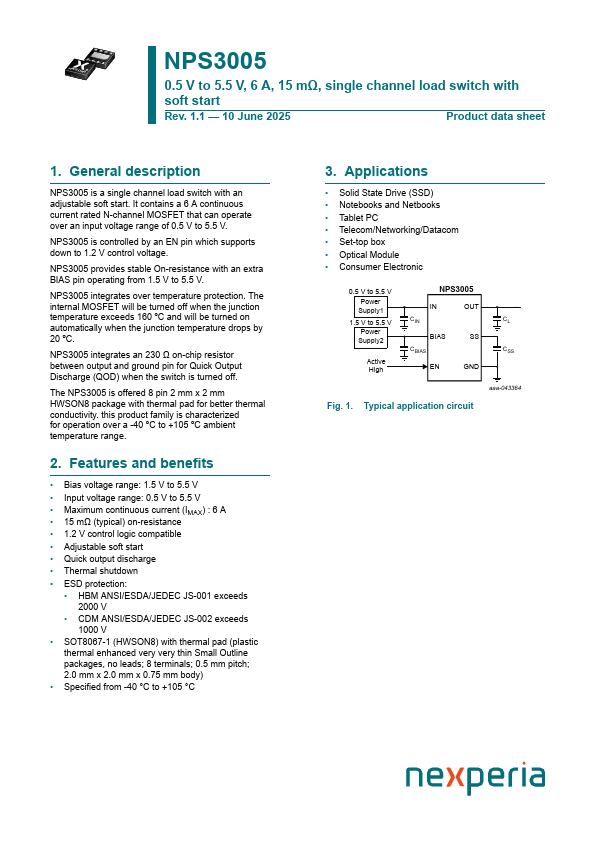

Preview of NPS3005 PDF

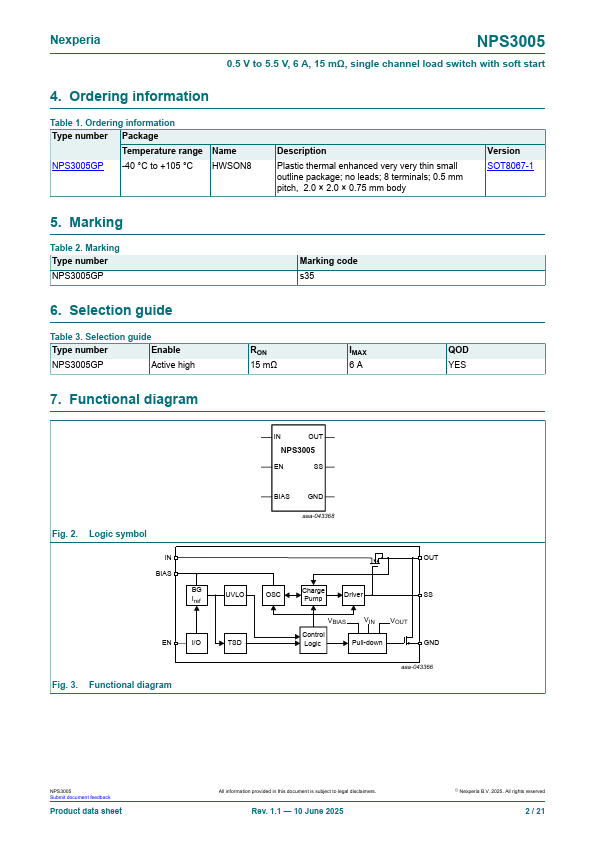

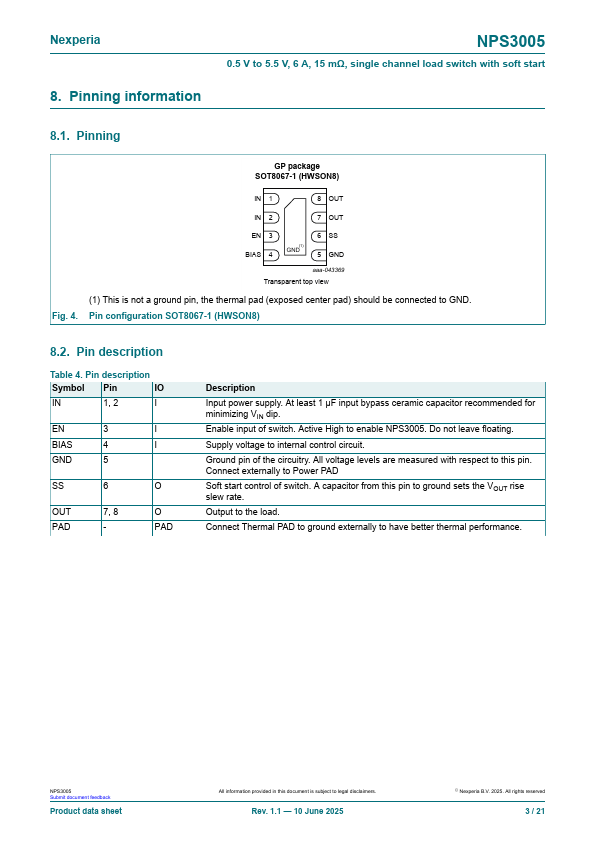

NPS3005 Datasheet Preview Page 2 NPS3005 Datasheet Preview Page 3

Datasheet Details

Part number:

NPS3005

Manufacturer:

nexperia ↗

File Size:

2.01 MB

Description:

6a single channel load switch.
