3PA9280 Datasheet - 3PEAK

3PA9280 CMOS A/D converter

The 3PA9280 is a monolithic, single supply, 8bit, 32 MSPS analog to digital converter with an on chip sample and hold amplifier and voltage reference. The 3PA9280 uses multi-stage differential pipeline architecture at 32 MSPS data rates and guarantees no missing codes over the full operating tempera.

3PA9280 Features

* CMOS 8 Bit 32 MSPS Sampling A/D Converter Pin Compatible with AD9280 Power Dissipation: 85 mW (3 V Supply) Operation Between +2.7 V and +5.5V Supply Differential Nonlinearity: 0.2 LSB Power Down (Sleep) Mode Three State Outputs Out of Range Indicator Built In Clamp Function (DC Restore) Adjustable O

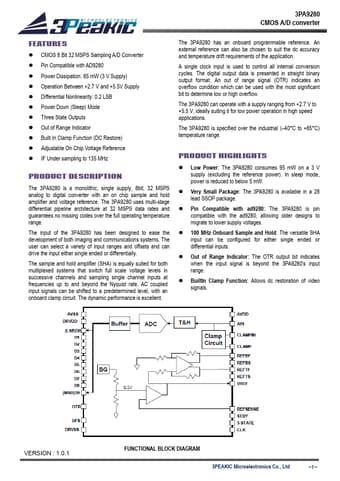

3PA9280 Datasheet (1.30 MB)
