TPC116S8 - Octal 16-Bit High Performance DAC

Product Overview

3PEAK

Datasheet Details

Part number	TPC116S8
Manufacturer	3PEAK
File Size	755.62 KB
Description	Octal 16-Bit High Performance DAC
Datasheet	TPC116S8 Datasheet

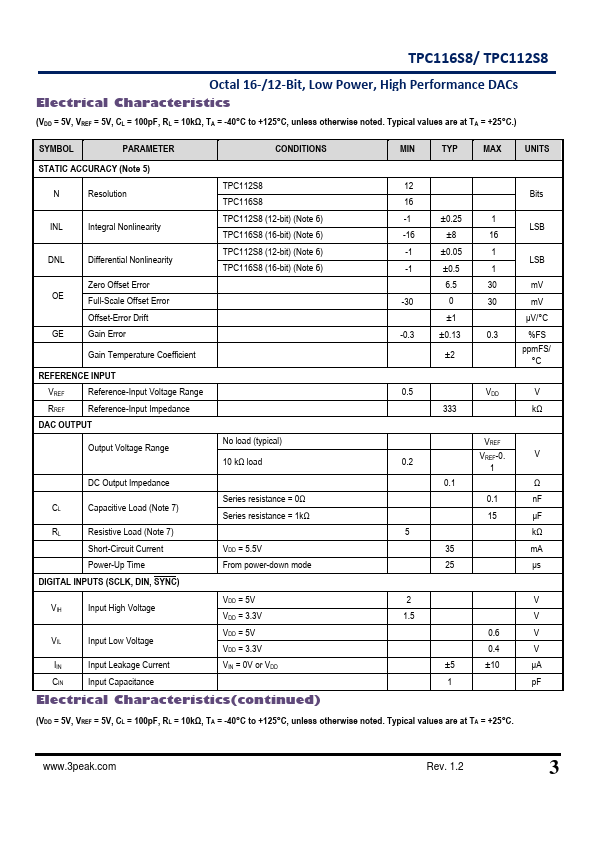

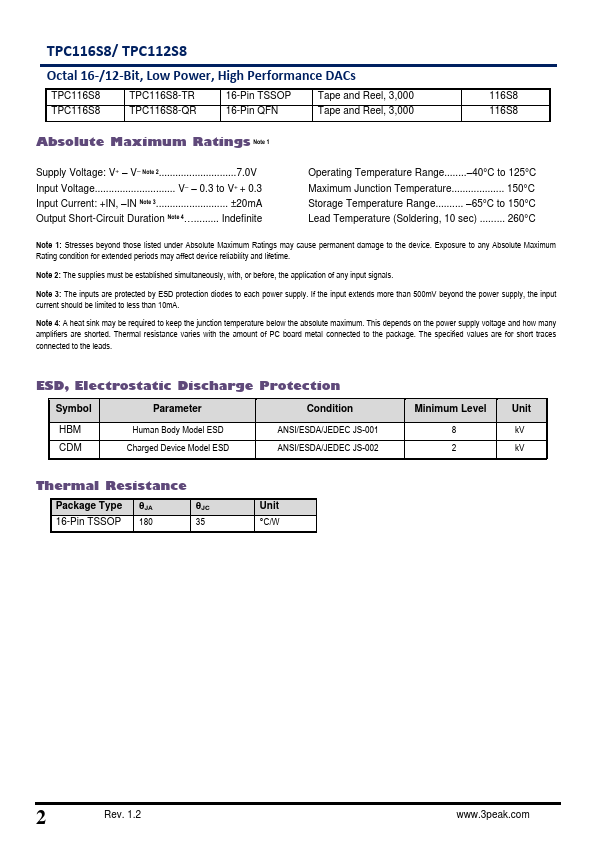

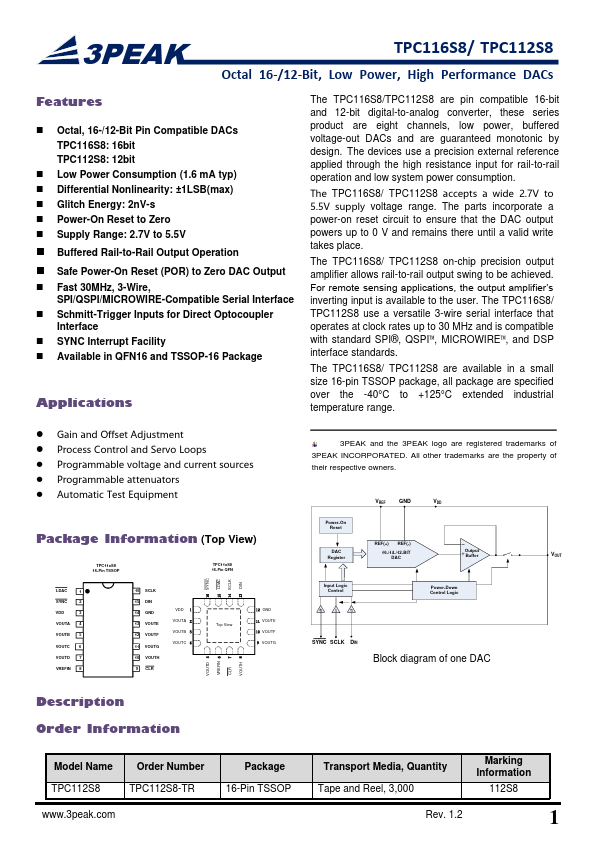

Additional preview pages of the TPC116S8 datasheet.

Product details

Description

Order Information Model Name TPC112S8 Order Number TPC112S8-TR www.3peak.com Package 16-Pin TSSOP Transport Media, Quantity Tape and Reel, 3,000 Marking Information 112S8 Rev.1.2 1 TPC116S8/ TPC112S8 Octal 16-/12-Bit, Low Power, High Performance DACs TPC116S8 TPC116S8 TPC116S8-TR TPC116S8-QR 16-Pin TSSOP 16-Pin QFN Tape and Reel, 3,000 Tape and Reel, 3,000 116S8 116S8 Absolute Maximum Ratings Note 1 Supply Voltage: V+ V Note 27.0V Input Voltage V

Features

Octal, 16-/12-Bit Pin Compatible DACs TPC116S8: 16bit TPC112S8: 12bit.
Low Power Consumption (1.6 mA typ).
Differential Nonlinearity: ±1LSB(max).
Glitch Energy: 2nV-s.
Power-On Reset to Zero.
Supply Range: 2.7V to 5.5V.
Buffered Rail-to-Rail Output Operation.
Safe Power-On Reset (POR) to Zero DAC Output.
Fast 30MHz, 3-Wire, SPI/QSPI/.
