TPC116S4 - High Performance DACs

Product Overview

3PEAK

📥 Download Datasheet

TPC116S4 High Performance DACs by 3PEAK - Datasheet Preview — Datasheet preview – TPC116S4

Datasheet Details

Part number	TPC116S4
Manufacturer	3PEAK
File Size	827.71 KB
Description	High Performance DACs
Datasheet	TPC116S4 Datasheet

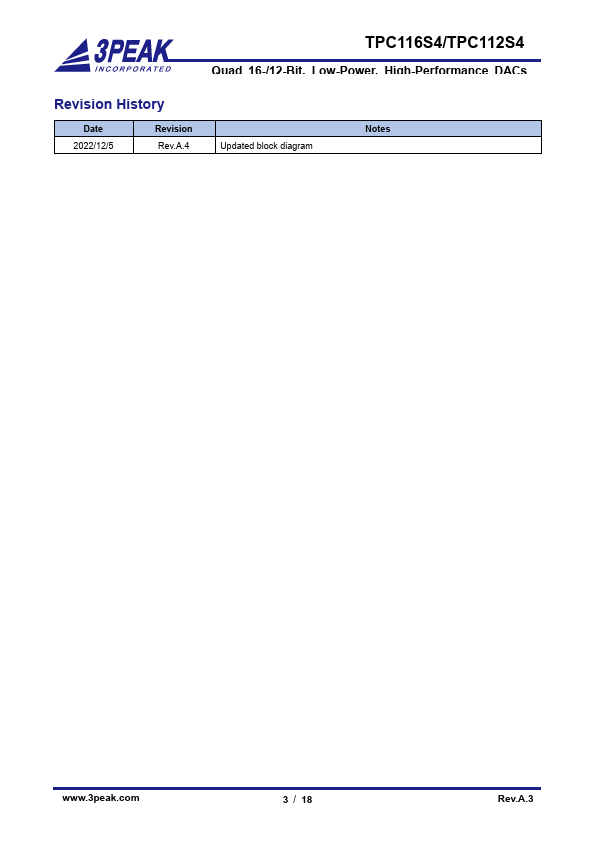

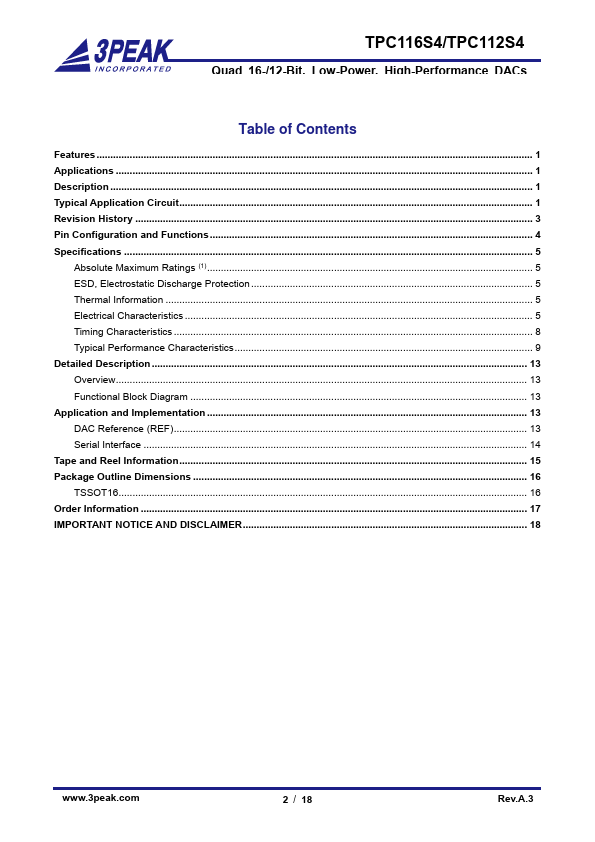

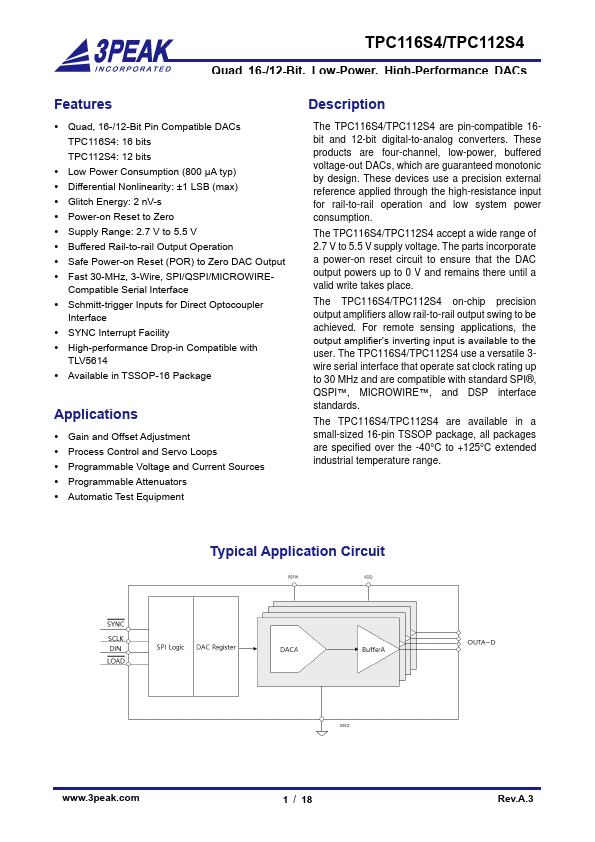

Additional preview pages of the TPC116S4 datasheet.

Product details

Description

The TPC116S4/TPC112S4 are pin-compatible 16bit and 12-bit digital-to-analog converters.

Features

Quad, 16-/12-Bit Pin Compatible DACs TPC116S4: 16 bits TPC112S4: 12 bits.
Low Power Consumption (800 μA typ).
Differential Nonlinearity: ±1 LSB (max).
Glitch Energy: 2 nV-s.
Power-on Reset to Zero.
Supply Range: 2.7 V to 5.5 V.
Buffered Rail-to-rail Output Operation.
Safe Power-on Reset (POR) to Zero DAC Output.
Fast 30-MHz, 3-Wire, SPI/QSPI/.
