TPF130 - 36M HD Composite Video Filter Driver

TPF130 Description

TPF130 36M HD Composite Video Filter Driver With Shutdown Function .
TPF130 is a specially designed for consumer applications, high-performance, low-cost video recons.

TPF130 Features

* 1-HDTV Video Filter Support Composite 1080i/720p
* Optimized 6th-order Butterworth Video reconstruction filter： HD Channel: -3dB ≥ 36MHz
* Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coupled - Support External DC Bias

TPF130 Applications

* Video Signal Amplification
* Set-Top Box Video Driver
* PVR、DVD Player Video Buffer
* Video Buffer for Portable or USB-Powered Video Devices

📥 Download Datasheet

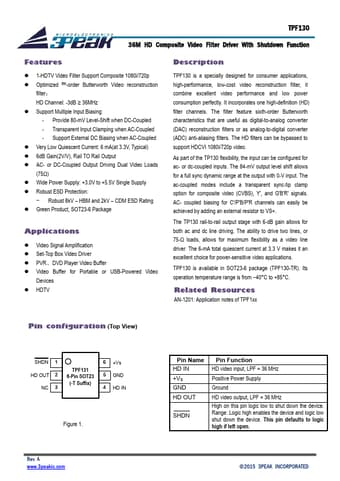

Preview of TPF130 PDF
