TPF134A - 4-Channel Video Amplifier

TPF134A Description

TPF134A 4-Channel Video Amplifier with 1-SD and 3-HD 6th-order Filters .

TPF134A Features

* 1-SDTV Video Filter Support CVBS
* 3-HDTV Video Filter Support Y'Pb'Pr'-1080i/720p, R'G'B' or VGA/SVGA/XGA
* Optimized 6th-order Butterworth Video reconstruction filter： CVBS Channel: -3dB at 9MHz HD Channel: -3dB ≥ 36MHz
* Support Multiple Input Biasing: - Provide 80-mV Level-Shif

TPF134A Applications

* Video Signal Amplification
* Set-Top Box Video Driver
* PVR、DVD Player Video Buffer
* Video Buffer for Portable or USB-Powered Video Devices
* HDTV De

📥 Download Datasheet

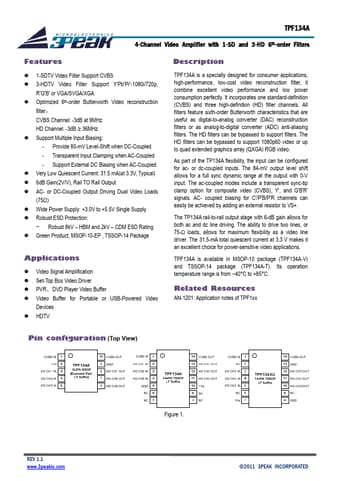

Preview of TPF134A PDF
