TPF142

One CVBS and One Full-HD Composite Video Filter Driver

TPF142 Features

* One CVBS and One Full-HD Composite Video Filter Driver Description

* 1-SDTV Video Filter Support CVBS

* 1-HDTV Video Filter Support Y'Pb'Pr'-1080p, R'G'B' or VGA/SVGA/XGA

* Optimized 6th-order Butterworth Video reconstruction filter: CVBS Channel: -3dB at 9MHz HD Channel: -3dB ≥ 72MHz

TPF142 General Description


* 1-SDTV Video Filter Support CVBS
* 1-HDTV Video Filter Support Y'Pb'Pr'-1080p, R'G'B' or VGA/SVGA/XGA
* Optimized 6th-order Butterworth Video reconstruction filter: CVBS Channel: -3dB at 9MHz HD Channel: -3dB ≥ 72MHz
* Support Multiple Input Biasing: - Provide 80-mV Level-Shift wh.

TPF142 Datasheet (385.89 KB)

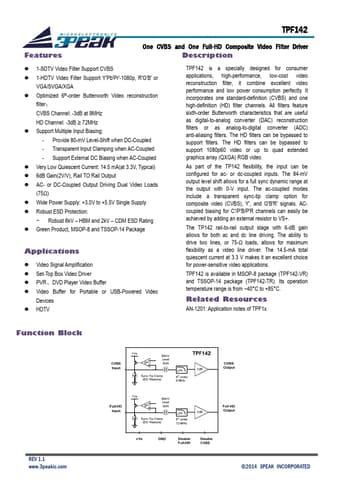

Preview of TPF142 PDF
