TPF143 - 3-channel High-Definition Video Filter Driver

TPF143 Description

TPF143 Low Power, 3-channel High-Definition Video Filter Driver .
TPF143 is a specially designed for consumer applications, high-perfo.

TPF143 Features

* 3-HDTV Video Filter Support Y'Pb'Pr'-1080p /1080i/720p, R'G'B' or VGA/SVGA/XGA
* Optimized 6th-order Butterworth Video reconstruction filter： HD Channel: -3dB ≥ 72MHz
* Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coup

TPF143 Applications

* Video Signal Amplification
* Set-Top Box Video Driver
* PVR、DVD Player Video Buffer
* Video Buffer for Portable or USB-Powered Video Devices

📥 Download Datasheet

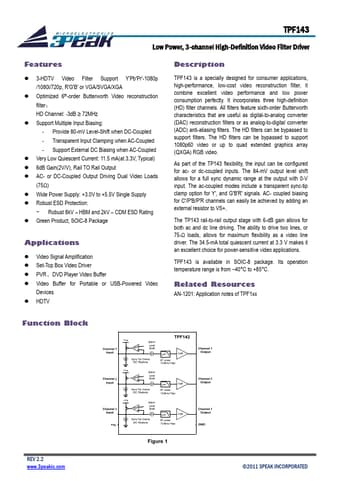

Preview of TPF143 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPF143
Manufacturer
3Peak
File Size
358.10 KB
Datasheet
TPF143-3Peak.pdf
Description
3-channel High-Definition Video Filter Driver
