TPM16050 - 17V H-Bridge Driver

3PEAK

📥 Download Datasheet

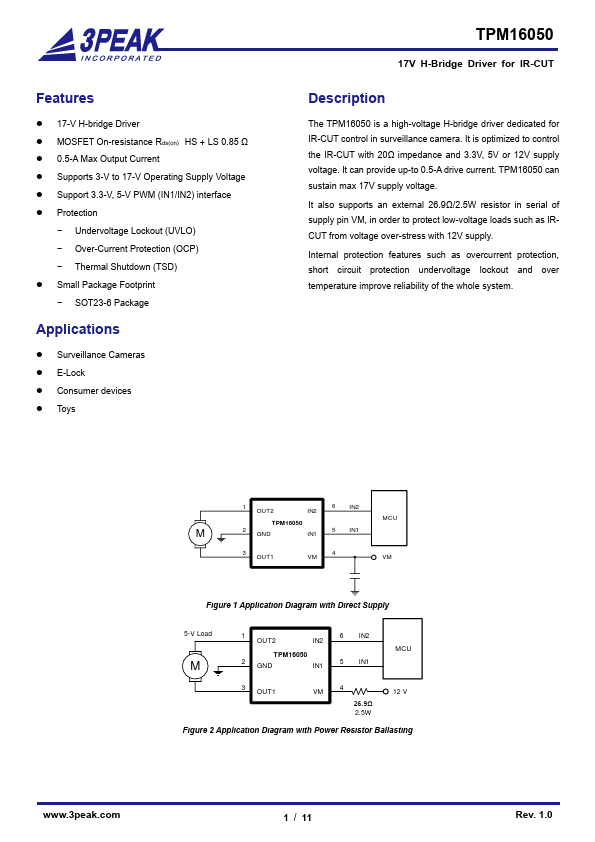

TPM16050 Datasheet Preview — Preview of TPM16050 PDF

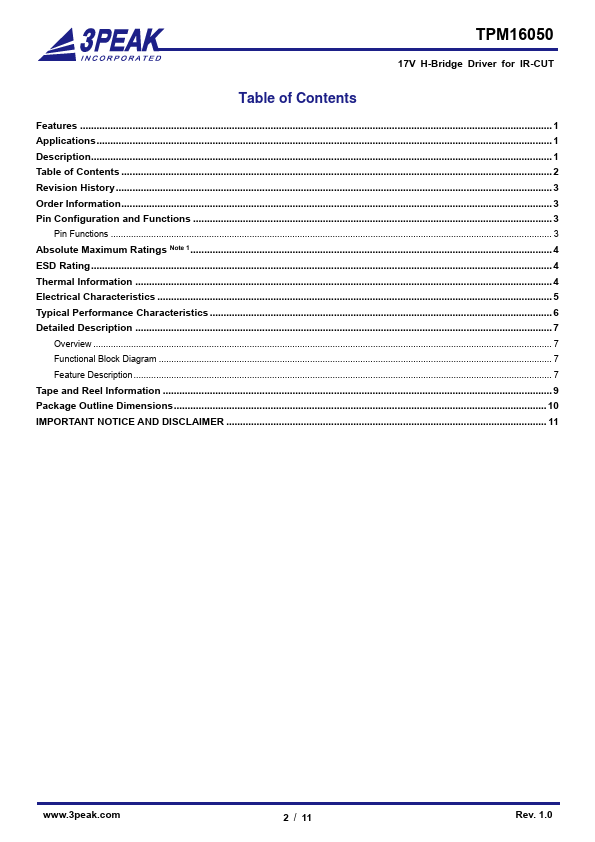

datasheet Preview Page 2

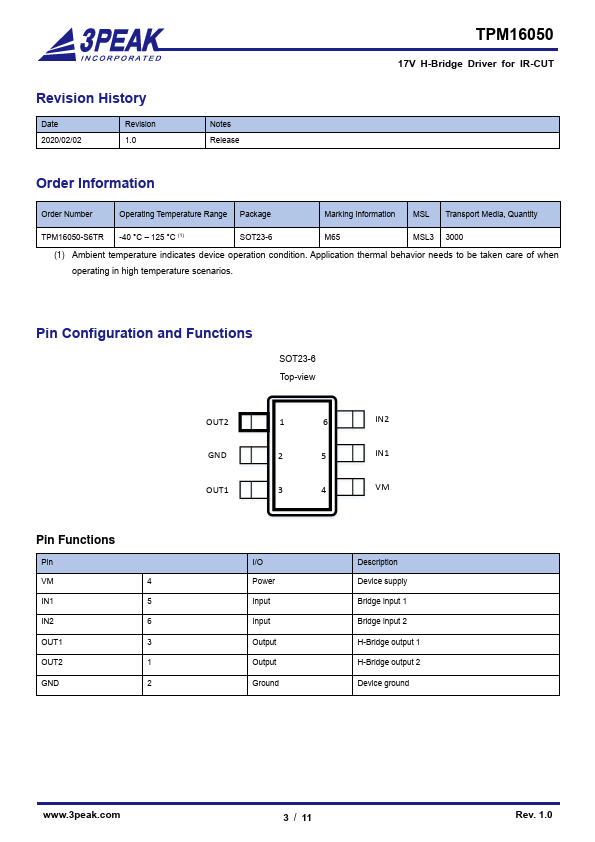

datasheet Preview Page 3

Datasheet Details

Part number	TPM16050
Manufacturer	3PEAK
File Size	487.69 KB
Description	17V H-Bridge Driver
Datasheet	TPM16050-3PEAK.pdf

TPM16050 Product details

Description

The TPM16050 is a high-voltage H-bridge driver dedicated for IR-CUT control in surveillance camera.

Features

17-V H-bridge Driver.
MOSFET On-resistance Rds(on) HS + LS 0.85 Ω.
0.5-A Max Output Current.
Supports 3-V to 17-V Operating Supply Voltage.
Support 3.3-V, 5-V PWM (IN1/IN2) interface.
Protection.
Undervoltage Lockout (UVLO).
Over-Current Protection (OCP).
Thermal Shutdown (TSD).
Small Package Footprint.
SOT23-6 Package.
