TPM0596 - 50-V 8-Ch Low-side Driver Array

3PEAK

📥 Download Datasheet

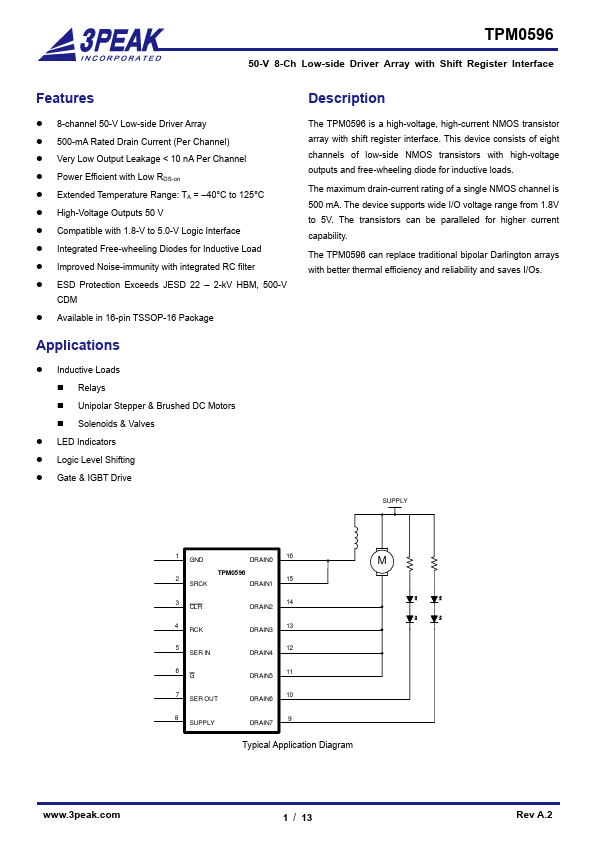

TPM0596 Datasheet Preview — Preview of TPM0596 PDF

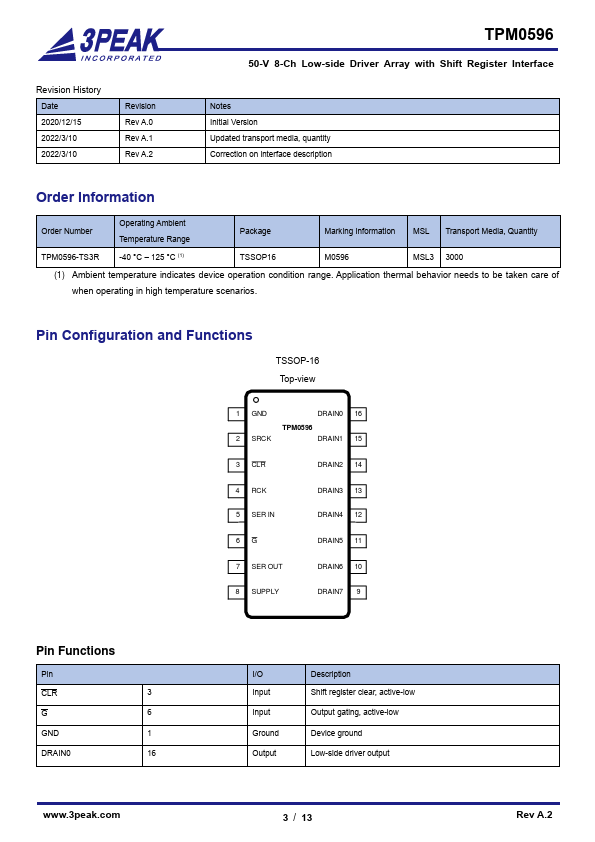

datasheet Preview Page 2

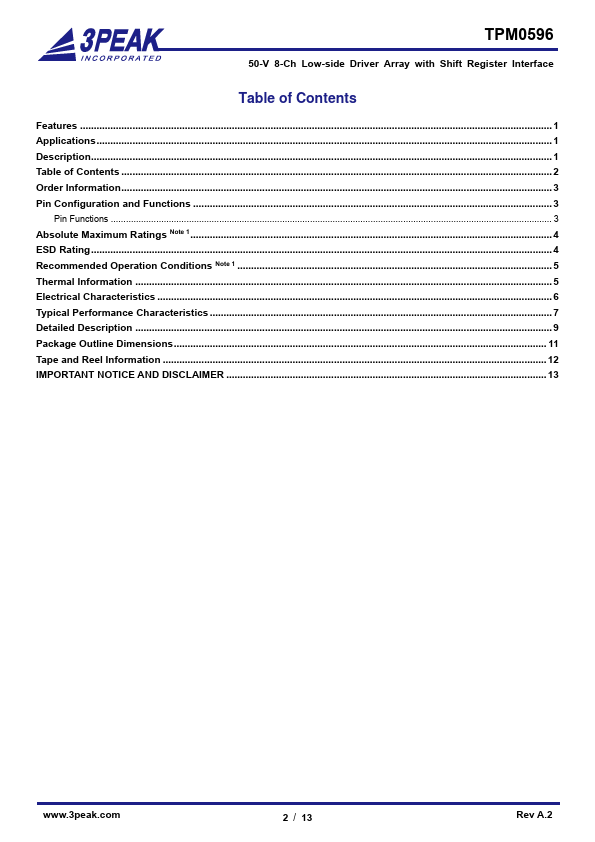

datasheet Preview Page 3

Datasheet Details

Part number	TPM0596
Manufacturer	3PEAK
File Size	598.46 KB
Description	50-V 8-Ch Low-side Driver Array
Datasheet	TPM0596-3PEAK.pdf

TPM0596 Product details

Description

The TPM0596 is a high-voltage, high-current NMOS transistor array with shift register interface.

Features

8-channel 50-V Low-side Driver Array.
500-mA Rated Drain Current (Per Channel).
Very Low Output Leakage < 10 nA Per Channel.
Power Efficient with Low RDS-on.
Extended Temperature Range: TA =.
40°C to 125°C.
High-Voltage Outputs 50 V.
Compatible with 1.8-V to 5.0-V Logic Interface.
Integrated Free-wheeling Diodes for Inductive Load.
Improved Noise-immunity with integrated RC filter.
ESD Protection Exceeds JESD 22.
2-kV HBM, 500-V.
