TPM05112 - Mini Switcher

TPM05112 Description

Mini Switcher TPM Series 5, 10, 15, 30 Watt .

TPM05112 Features

* Miniature AC/DC Switching Power Modules PCB Mounting with Solder Pins or Chassis Mounting with Screw Terminals Single, Dual and Triple Output Models Universal Input 85-264 VAC, 47
* 400 Hz High Efficiency EMI meets EN 55022, Class B and FCC, Level B Low Ripple and Noise Short Circuit and Overl

TPM05112 Applications

* in commercial and industrial electronic equipment. Full compliance to European low voltage and EMC directive, UL and cUL safety approval qualifies this product for worldwide markets. SMD-technology and a high efficiency guarantees a high reliability of these MiniSwitcher. Models Ordercode PCB-mount

📥 Download Datasheet

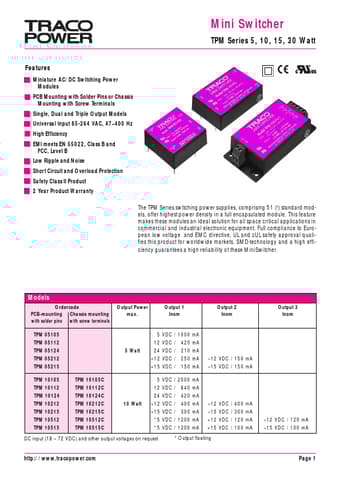

Preview of TPM05112 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPM05112
Manufacturer
Traco Electronic AG
File Size
127.17 KB
Datasheet
TPM05112_TracoElectronicAG.pdf
Description
Mini Switcher
