TPM27524, TPM27523 Datasheet - 3PEAK

TPM27524, TPM27523, Dual 5-A Low-side Gate Driver

TPM2752x Dual 5-A High-speed, Low-side Gate Driver .
Industry-standard Pin Configuration. Automotive AEC-Q100 Grade 1 Qualified (Refer to TPM27524Q). 4.

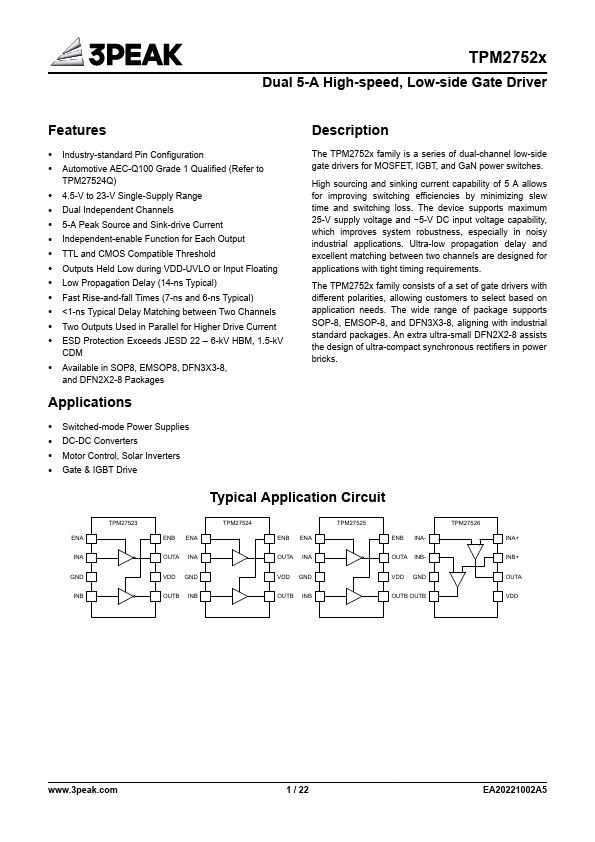

datasheet Preview Page 1 from Datasheet4u.com

TPM27523-3PEAK.pdf

TPM27524 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPM27524, TPM27523. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPM27524, TPM27523

Manufacturer:

3PEAK

File Size:

1.34 MB

Description:

Dual 5-A Low-side Gate Driver

Note:

This datasheet PDF includes multiple part numbers: TPM27524, TPM27523.
Please refer to the document for exact specifications by model.

Applications

* The TPM2752x family is a series of dual-channel low-side gate drivers for MOSFET, IGBT, and GaN power switches. High sourcing and sinking current capability of 5 A allows for improving switching efficiencies by minimizing slew time and switching loss. The device supports maximum 25-V supply voltage
