TPP60308 - 60-V 3.5-A Step-Down DC/DC Converter

3PEAK

📥 Download Datasheet

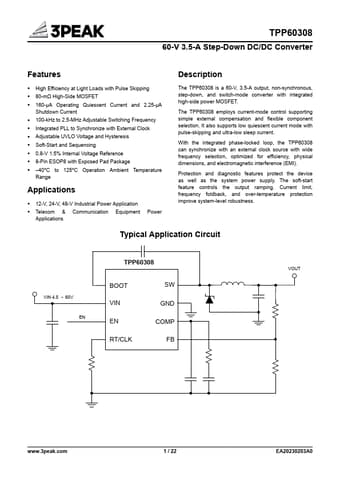

TPP60308 Datasheet Preview — Preview of TPP60308 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPP60308
Manufacturer	3PEAK
File Size	1.84 MB
Description	60-V 3.5-A Step-Down DC/DC Converter
Datasheet	TPP60308-3PEAK.pdf

TPP60308 Product details

Description

The TPP60308 is a 60-V, 3.5-A output, non-synchronous, step-down, and switch-mode converter with integrated high-side power MOSFET.

Features

High Efficiency at Light Loads with Pulse Skipping.
80-mΩ High-Side MOSFET.
160-μA Operating Quiescent Current and 2.25-μA Shutdown Current.
100-kHz to 2.5-MHz Adjustable Switching Frequency.
Integrated PLL to Synchronize with External Clock.
Adjustable UVLO Voltage and Hysteresis.
Soft-Start and Sequencing.
0.8-V 1.5% Internal Voltage Reference.
8-Pin ESOP8 with Exposed Pad Package.
40°C to 125°.
