TPT29548 Datasheet - 3PEAK

TPT29548 - 8-channel I2C Switch

The TPT29548 is a 1:8 bidirectional translating I2C switch. The SCL/SDA upstream pair fans out to eight downstream channels. Any single SCn/SDn channel or combination of channels can be selected, determined by the programmable control register. If one of the downstream I2C buses is stuck in a low st.

TPT29548 Features

* Bidirectional Translator of 1:8 I2C Switch

* Active-Low Reset Input

* Three address terminals, allowing up to 8 devices on the I2C Bus

* Operating Power-Supply Voltage Range of 2.3 V to 5.5 V

* Allows Voltage-Level Translation Between 2.5 V, 3.3 V, and 5 V Buses

* Support S

TPT29548-3PEAK.pdf

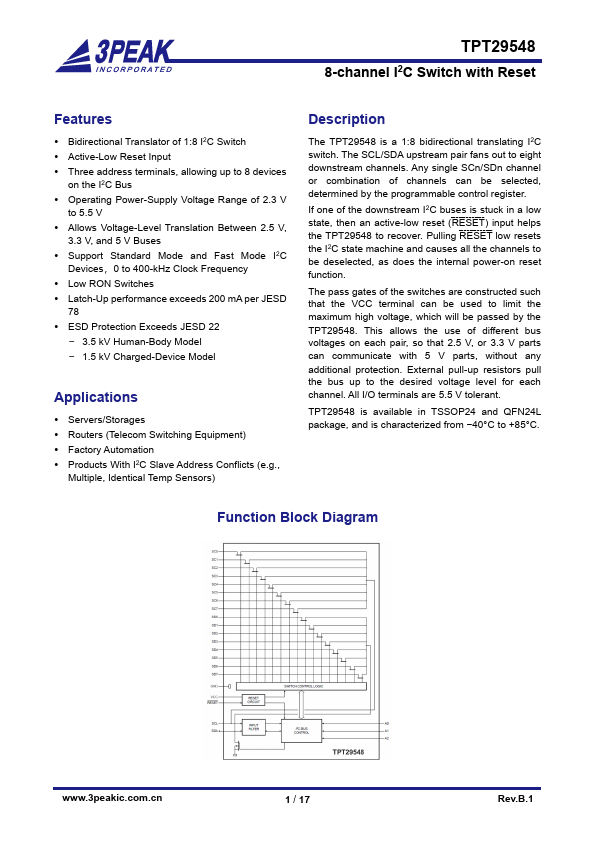

Preview of TPT29548 PDF

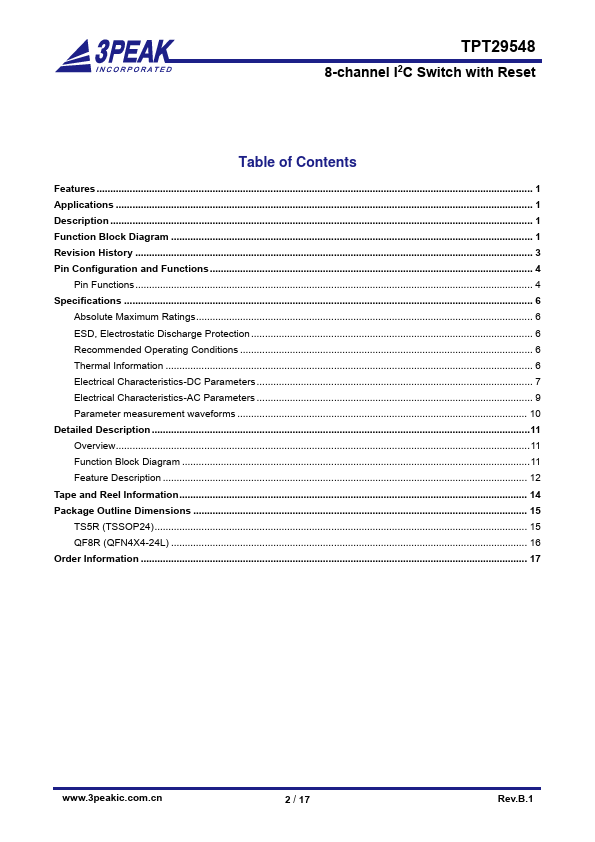

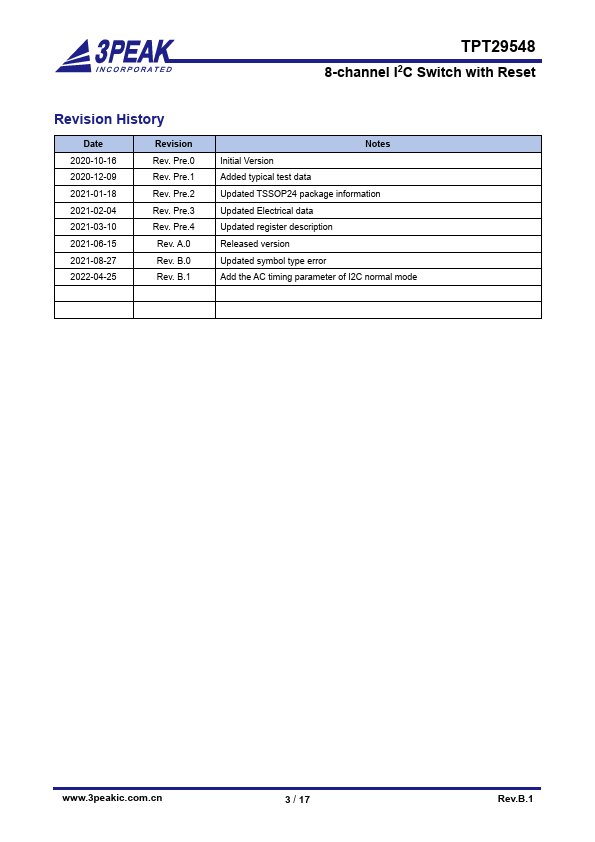

TPT29548 Datasheet Preview Page 2 TPT29548 Datasheet Preview Page 3

Datasheet Details

Part number:

TPT29548

Manufacturer:

3PEAK

File Size:

0.98 MB

Description:

8-channel i2c switch.
