TPT5609 - NPN Transistor

Datasheet Summary

Features

  • Power dissipation PCM: 1 W (Tamb=25℃) Collector current ICM: 1 Collector-base voltage A V(BR)CBO: 25 V Operating and storage junction temperature range TJ, Tstg: -55℃ to +150℃ TO-92L 1.

📥 Download Datasheet

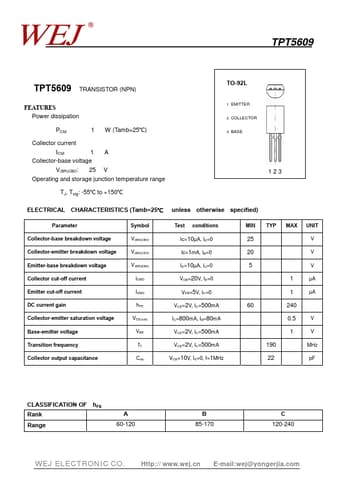

Datasheet preview – TPT5609

Datasheet Details

Part number TPT5609
Manufacturer WEJ
File Size 99.94 KB
Description NPN Transistor
Datasheet download datasheet TPT5609 Datasheet
