TPT1042V - Fault Protected High-Speed CAN FD Transceiver

Datasheet Summary

Description

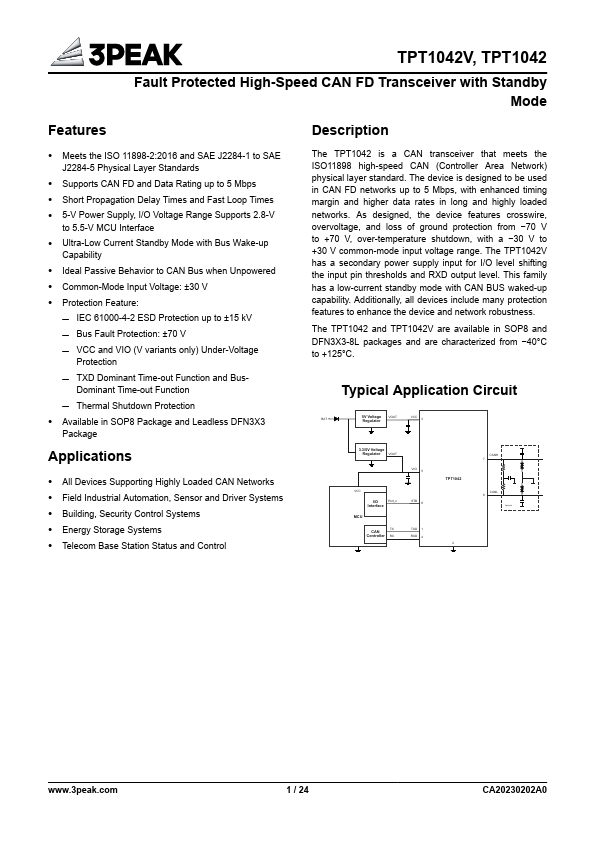

The TPT1042 is a CAN transceiver that meets the ISO11898 high-speed CAN (Controller Area Network) physical layer standard.

The device is designed to be used in CAN FD networks up to 5 Mbps, with enhanced timing margin and higher data rates in long and highly loaded networks.

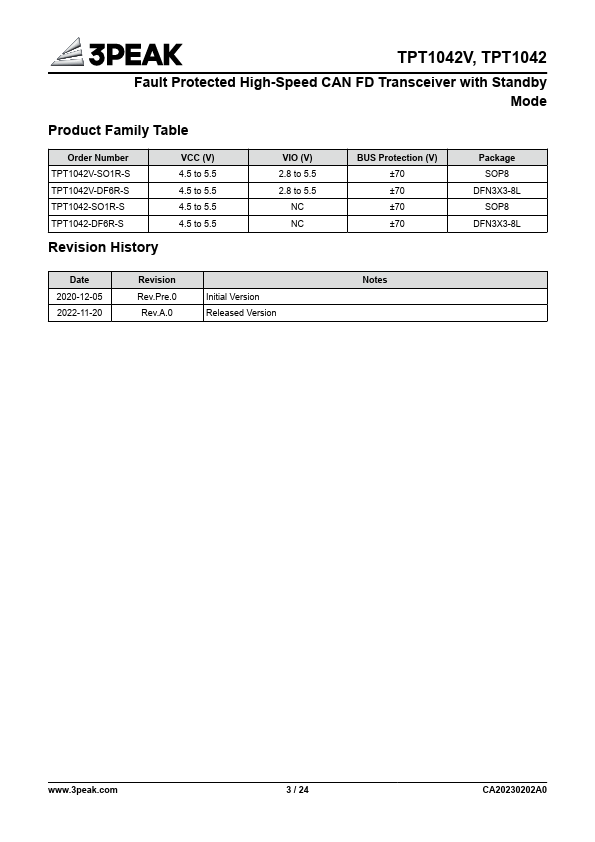

Features

  • Meets the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards.
  • Supports CAN FD and Data Rating up to 5 Mbps.
  • Short Propagation Delay Times and Fast Loop Times.
  • 5-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface.
  • Ultra-Low Current Standby Mode with Bus Wake-up Capability.
  • Ideal Passive Behavior to CAN Bus when Unpowered.
  • Common-Mode Input Voltage: ±30 V.
  • Protection Feature:.
