TPT1042 - Fault Protected High-Speed CAN FD Transceiver

Product Overview

3PEAK

Part number	TPT1042
Manufacturer	3PEAK
File Size	1.01 MB
Description	Fault Protected High-Speed CAN FD Transceiver
Datasheet	TPT1042 Datasheet
Note	This datasheet PDF includes multiple part numbers: TPT1042, TPT1042V. Please refer to the document for exact specifications by model.

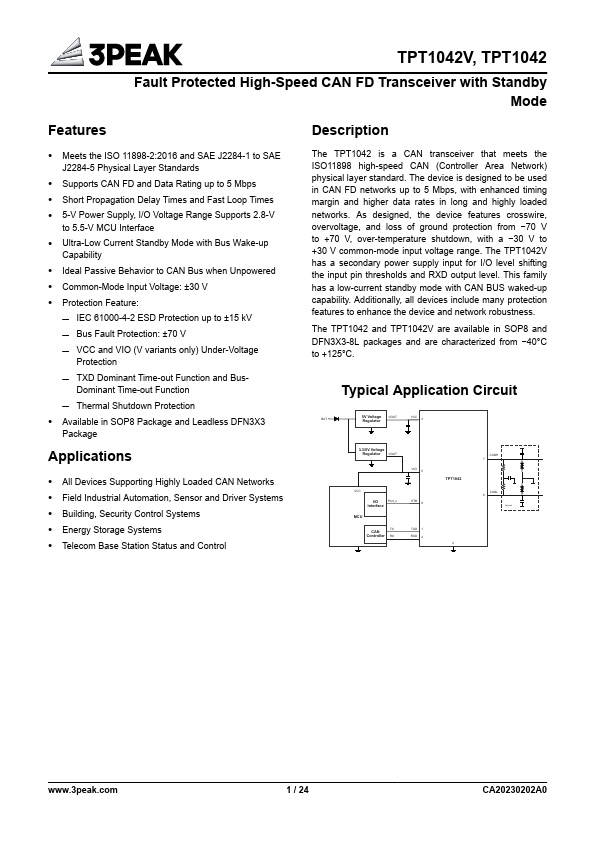

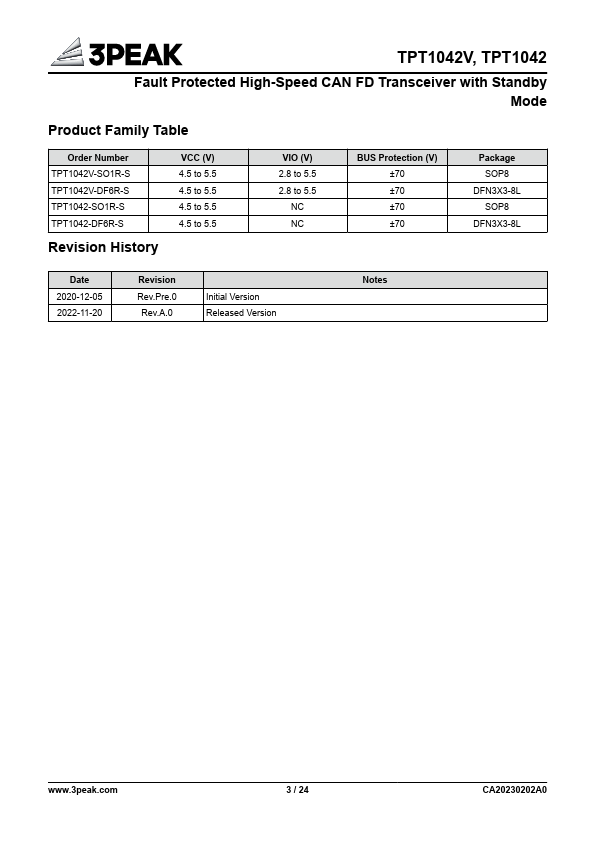

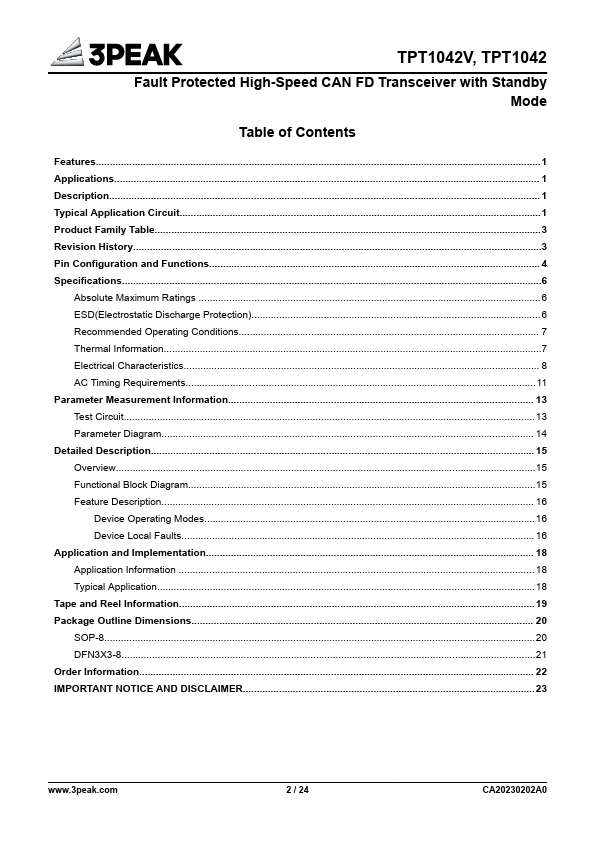

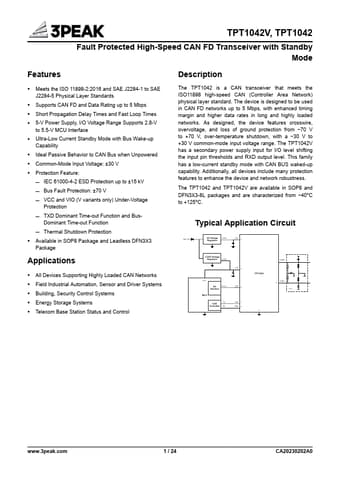

Additional preview pages of the TPT1042 datasheet.

The TPT1042 is a CAN transceiver that meets the ISO11898 high-speed CAN (Controller Area Network) physical layer standard.

Meets the ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 Physical Layer Standards.
Supports CAN FD and Data Rating up to 5 Mbps.
Short Propagation Delay Times and Fast Loop Times.
5-V Power Supply, I/O Voltage Range Supports 2.8-V to 5.5-V MCU Interface.
Ultra-Low Current Standby Mode with Bus Wake-up Capability.
Ideal Passive Behavior to CAN Bus when Unpowered.
Common-Mode Input Voltage: ±30 V.
Protection Feature:.
