LMV324TP, LMV321TP Micro-Power Rail-to-Rail I/O Op Amps

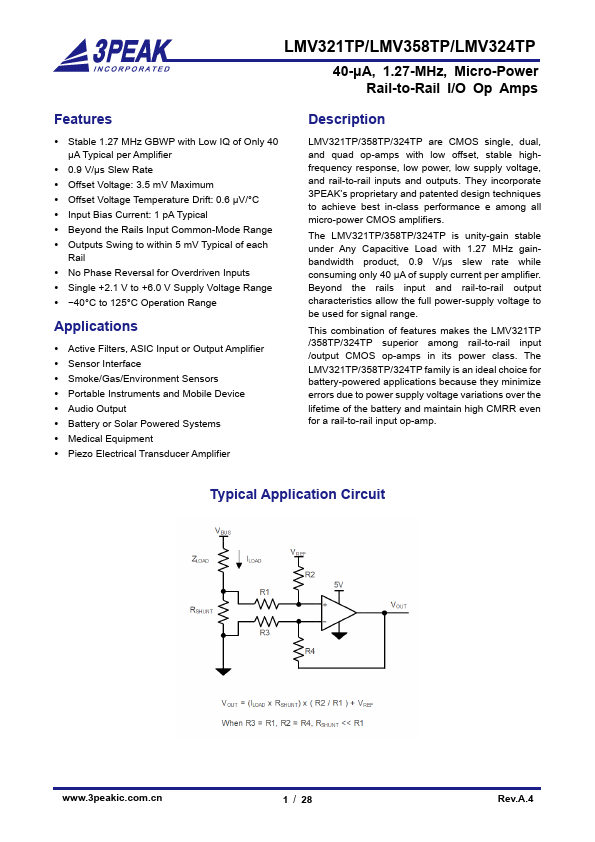

📥 Download Datasheet  Datasheet Preview Page 1

Description

LMV321TP/LMV358TP/LMV324TP 40-μA, 1.27-MHz, Micro-Power Rail-to-Rail I/O Op Amps .
LMV321TP/358TP/324TP are CMOS single, dual, and quad op-amps with low offset, stable highfrequency response, low power, low supply voltage, and rail-t.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LMV324TP, LMV321TP. Please refer to the document for exact specifications by model.

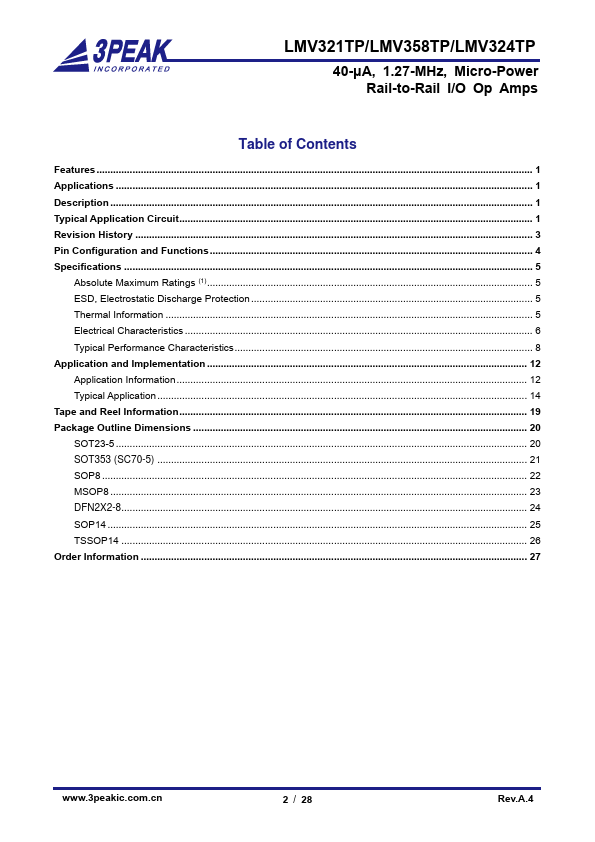

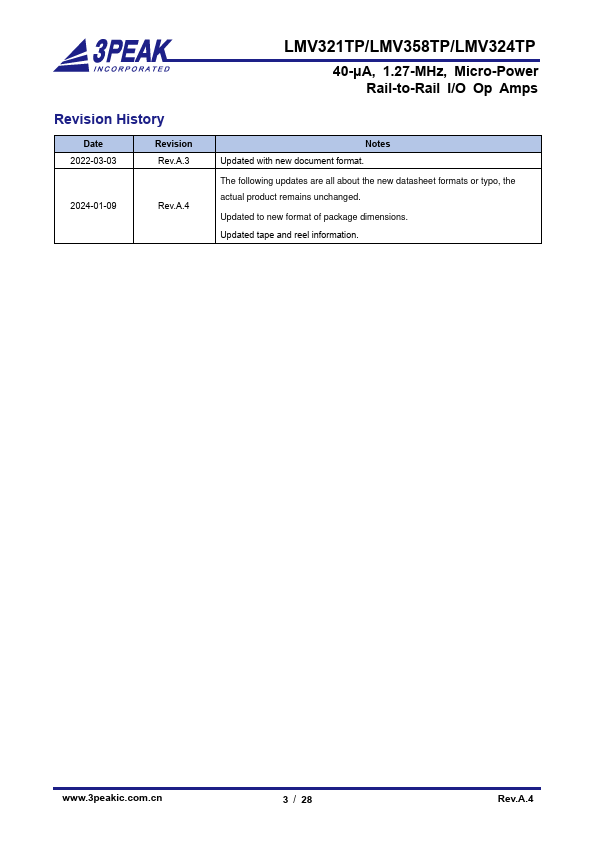

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LMV324TP, LMV321TP
Manufacturer
3Peak
File Size
1.65 MB
Datasheet
LMV321TP-3Peak.pdf
Description
Micro-Power Rail-to-Rail I/O Op Amps
Note
This datasheet PDF includes multiple part numbers: LMV324TP, LMV321TP.
Please refer to the document for exact specifications by model.

Features

* Stable 1.27 MHz GBWP with Low IQ of Only 40 μA Typical per Amplifier
* 0.9 V/μs Slew Rate
* Offset Voltage: 3.5 mV Maximum
* Offset Voltage Temperature Drift: 0.6 μV/°C
* Input Bias Current: 1 pA Typical
* Beyond the Rails Input Common-Mode Range
* Outputs Swing to with

Applications

* Active Filters, ASIC Input or Output Amplifier
* Sensor Interface
* Smoke/Gas/Environment Sensors
* Portable Instruments and Mobile Device
* Audio Output
* Battery or Solar Powered Systems
* Medical Equipment
