LMV321B Datasheet, Amps, 3Peak

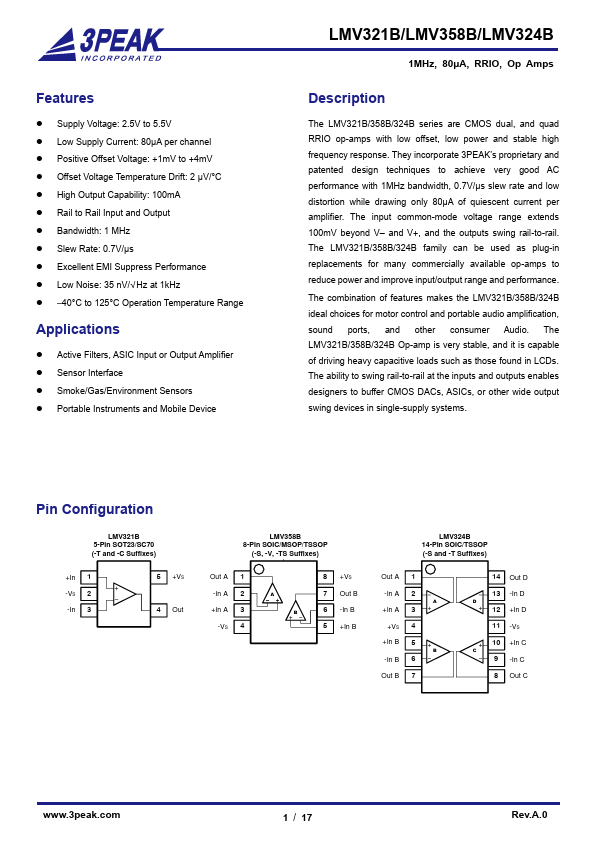

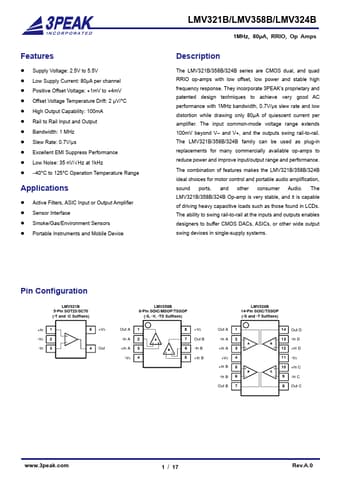

LMV321B Features

• Amps
• Supply Voltage: 2.5V to 5.5V
• Low Supply Current: 80μA per channel
• Positive Offset Voltage: +1mV to +4mV
• Offset Voltage Temperature Drift: 2 μV/°C

PDF File Details

Part number:

LMV321B

Manufacturer:

3Peak

File Size:

1.04MB

Download:

📄 Datasheet

Description:

Op amps. The LMV321B/358B/324B series are CMOS dual, and quad RRIO op-amps with low offset, low power and stable high frequency response. They

LMV321B Application

• Applications
• Active Filters, ASIC Input or Output Amplifier
• Sensor Interface
• Smoke/Gas/Environment Sensors
• P
